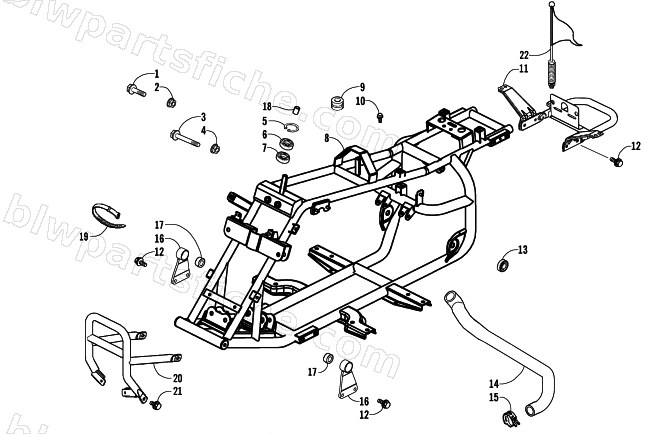

2006 Arctic Cat 50 DVX — FRAME AND RELATED PARTS ASSEMBLY
2006 50 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-616 | BOLT FLANGE 8*35 | 1 | $1.78 | |
| 2 | 3303-269 | NUT U FLANGE 8MM | 1 | $1.50 | |
| 3 | 3304-548 | BOLT FLANGE 10*70 | 1 | $3.30 | |
| 4 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 5 | 3303-347 | CIR CLIP IN 32 | 1 | $2.61 | |
| 6 | 3303-295 | OIL SEAL 18*32*7 | 1 | $2.61 | |
| 7 | 3303-298 | OIL SEAL 22*35*7 | 1 | $3.02 | |
| 8 | 3303-181 | BODY COMP FRAME | 1 | $843.95 | |
| 9 | 3303-239 | RUBBER TAIL LIGHT | 1 | $1.64 | |
| 10 | 3303-308 | BOLT HEX 5*12 | 1 | $0.81 | |
| 11 | 3303-236 | GRIP ASSY REAR | 1 | $100.95 | |
| 12 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 13 | 3303-392 | BEARING BALL RADIAL 6002 | 1 | $17.87 | |
| 14 | 3303-477 | DUCT L COVER | 1 | $23.39 | |
| 15 | 3303-074 | CLIP HOSE | 1 | $3.16 | |
| 16 | 3303-183 | BRKT R ENG HANGER | 1 | $20.63 | |
| 16 | 3303-184 | BRKT L ENG HANGER | 1 | $20.63 | |
| 17 | 3304-542 | RUBBER BUSHING ENGINE HANGER | 1 | $6.89 | |
| 18 | 3303-445 | COLLAR FR DIST | 1 | $6.34 | |
| 19 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 | |
| 20 | 3305-261 | PIPE COMP FRONT BUMPER | 1 | $112.95 | |
| 21 | 3303-365 | R/B 3304-544 | 1 | $0.95 | |
| 22 | 3305-308 | FLAG ASSY | 1 | $54.95 |
