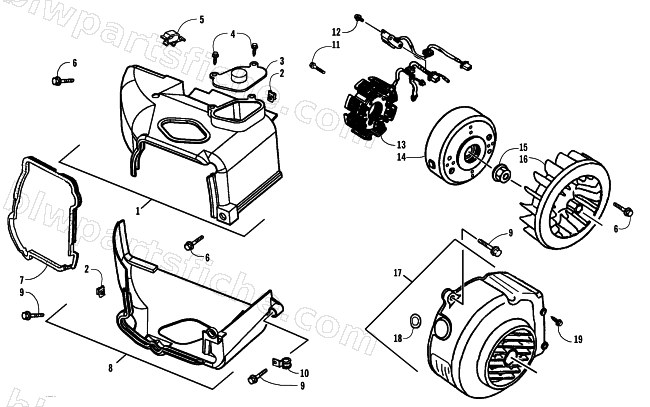

STATOR, FLYWHEEL, AND ENGINE SHROUD ASSEMBLIES
2006 50 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-520 | SHROUD ASSY B | 1 | $26.95 | |
| 2 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 3 | 3303-519 | B0X TENSIONER LIFTER | 1 | $2.95 | |
| 4 | 3303-605 | SCREW TAPPING 4*12 | 1 | $0.55 | |
| 5 | 3303-443 | CLIP VACUUM TUBE | 1 | $2.33 | |
| 6 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 | |
| 7 | 3303-517 | SEAL SHROUD | 1 | $16.49 | |
| 8 | 3303-518 | SHROUD ASSY A | 1 | $25.95 | |
| 9 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 10 | 3303-478 | CLAMPER CARB DRAIN TUBE | 1 | $2.95 | |
| 11 | 3303-619 | BOLT FLANGE SH 6*22 | 1 | $0.81 | |
| 12 | 3303-308 | BOLT HEX 5*12 | 1 | $0.81 | |
| 13 | 3305-300 | STATOR COMP (D402) | 1 | $196.95 | |
| 13 | 3303-554 | STATOR COMP (D406) | 1 | $169.95 | |
| 14 | 3303-551 | FLYWHEEL COMP (D402) | 1 | $118.95 | |
| 14 | 3303-552 | FLYWHEEL COMP (D406) | 1 | $118.95 | |
| 14 | 3303-553 | FLYWHEEL COMP (D414) | 1 | $130.95 | |
| 15 | 3303-333 | R/B 3307-058 | 1 | $0.95 | |
| 16 | 3303-515 | FAN COMP COOLING | 1 | $20.63 | |
| 17 | 3303-516 | COVER ASSY FAN | 1 | $26.95 | |
| 18 | 3303-620 | GROM B SIDE PNL | 1 | $1.95 | |
| 19 | 3304-585 | SCREW TAPPING 5X16 (SQUARE HEAD) | 1 | $0.81 |
