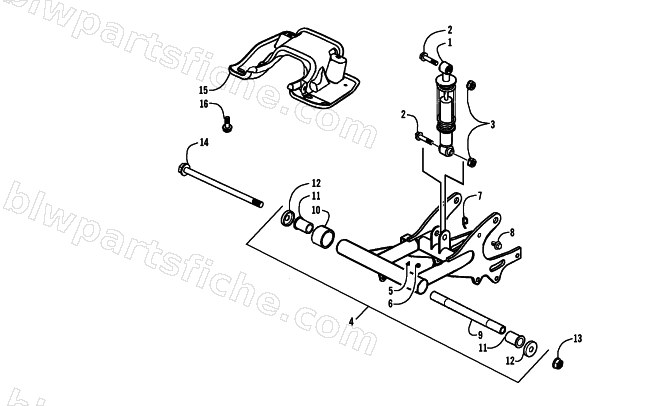

REAR SUSPENSION ASSEMBLY
2006 50 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-433 | CUSH ASSY RR | 1 | $212.95 | |
| 2 | 3303-376 | SCREW,CAP-HFH M10X1.25X40 | 1 | $2.06 | |
| 3 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 4 | 3303-432 | FORK ASSY RR | 1 | $224.95 | |
| 5 | 3303-394 | BOOT GREASE NIPPLE | 1 | $1.37 | |
| 6 | 3303-393 | NIPPLE GREASE | 1 | $6.75 | |
| 7 | 3304-594 | CLAMPER BRAKE HOSE | 1 | $3.71 | |
| 8 | 3303-356 | BOLT FLANGE 6*10 | 1 | $0.81 | |
| 9 | 3303-189 | COLLAR RR FORK DIST | 1 | $20.63 | |
| 10 | 3303-190 | SLEEVE RUBBER | 1 | $20.95 | |
| 11 | 3303-191 | BUSH REAR FORK | 1 | $16.49 | |
| 12 | 3303-192 | CAP RR FORK DUST SEAL | 1 | $5.37 | |
| 13 | 3304-032 | NUT FLANGE 14MM | 1 | $6.34 | |
| 14 | 3303-150 | BOLT REAR FORK [AXLE] | 1 | $19.25 | |
| 15 | 3304-593 | GUARD ASSY REAR FORK | 1 | $37.95 | |
| 16 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 |
