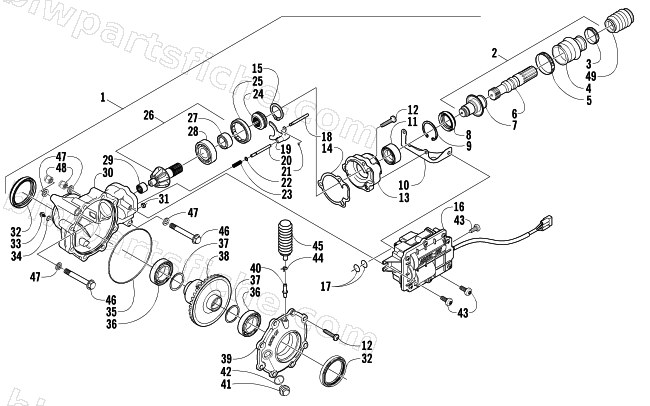

FRONT DRIVE GEARCASE ASSEMBLY
2006 500 AUTOMATIC TRANSMISSION 4X4 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-816 | GEARCASE,FRONT(3.6)-ASSY | 1 | $2,161.95 | |
| 2 | 0502-385 | SHAFT, PROPELLER - ASSEMBLY(500) | 1 | $232.95 | |
| 3 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 4 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 5 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 6 | 1402-045 | SHAFT, OUTPUT (500) | 1 | $50.95 | |
| 7 | 1502-085 | SHAFT,INPUT-ASSEMBLY | 1 | $90.95 | |
| 8 | 1402-011 | SEAL | 1 | $5.51 | |
| 9 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 10 | 0502-347 | BRACKET,ACTUATOR-WELDMENT | 1 | $26.95 | |
| 11 | 1402-043 | BEARING, BALL - DOUBLE ROW | 1 | $69.95 | |
| 12 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 13 | 0502-528 | HOUSING,PINION-MACH | 1 | $180.95 | |
| 14 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 15 | 0423-417 | RING,RETAINING-EXT 30 | 1 | $8.21 | |
| 16 | 0502-296 | ACTUATOR (3 WIRE) | 1 | $381.95 | |
| 18 | 0402-997 | PUSHROD,SELECTOR | 1 | $66.95 | |
| 19 | 0402-998 | FORK,SELECTOR | 1 | $82.95 | |
| 20 | 0402-417 | SHAFT,SHUTTLE | 1 | $20.63 | |
| 21 | 0423-402 | RING,RETAINING-4MM EXT. | 1 | $3.16 | |
| 22 | 0423-147 | O-RING,3X 2MM | 1 | $1.50 | |
| 23 | 0402-999 | SPRING,RETURN-4WD | 1 | $1.78 | |
| 24 | 0402-413 | COUPLER,DRIVE | 1 | $66.95 | |
| 25 | 0402-357 | COLLAR,LOCKING (M64-1.5 RH) | 1 | $50.95 | |
| 26 | 0502-783 | PINION-ASSY (10TOOTH) | 1 | $196.95 | |
| 27 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 28 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 29 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 30 | 0502-514 | HOUSING, GEARCASE - MACHINED | 1 | $248.95 | |
| 31 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 32 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 33 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 34 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 35 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 36 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 37 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 37 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 37 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 37 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 37 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 38 | 0502-779 | GEAR(36T3.6)-WELDT | 1 | $664.95 | |
| 39 | 0502-121 | COVER,GEARCASE-FR MACH | 1 | $122.95 | |
| 40 | 1402-104 | BARB, STRAIGHT | 1 | $50.95 | |
| 41 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 42 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 | |
| 43 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 44 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 45 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 46 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 47 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 48 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 49 | 0402-966 | BOOT,PROP SHAFT (LONG) | 1 | $13.73 |
