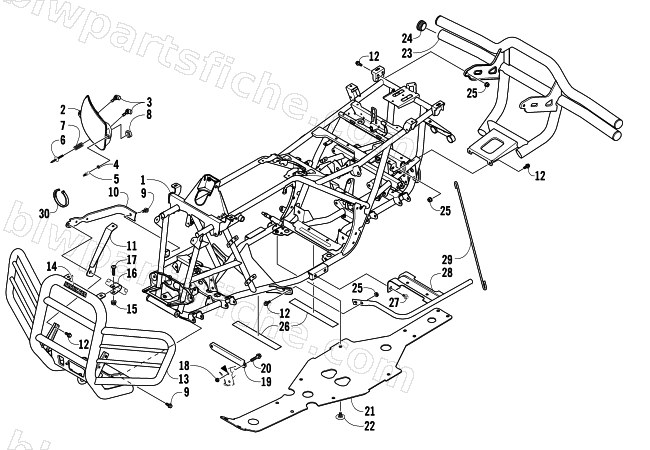

2006 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA — FRAME AND RELATED PARTS
2006 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-756 | FRAME- PTD BLACK (FIS II SINGLES 06) | 1 | $1,700.95 | |
| 2 | 0509-076 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 2 | 0509-077 | HEADLIGHT,LH-ASSY | 1 | $137.95 | |
| 3 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 4 | 0423-452 | SOCKET,MOUNTING-BALL | 1 | $4.95 | |
| 5 | 0423-515 | STUD,BALL-8.0 DIA X M5 | 1 | $6.95 | |
| 6 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 7 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 8 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 9 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 10 | 1506-725 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $29.95 | |
| 11 | 1506-562 | BRACKET,BUMPER-RH-BLACK | 1 | $30.95 | |
| 11 | 1506-563 | BRACKET,BUMPER-LH-BLACK | 1 | $30.95 | |
| 12 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 13 | 1506-398 | BUMPER,LE-BLACK | 1 | $331.95 | |
| 14 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 15 | 8424-805 | NUT,HEX FLG-M8X1.25 CL8 RIE BLK | 1 | $0.95 | |
| 16 | 1506-667 | STRAP,BUMPER SUPPORT-BLACK | 1 | $13.73 | |
| 17 | 8468-845 | SCREW,MACH-TSPNH M8X1.25X45 CL8.8 BLK | 1 | $4.26 | |
| 18 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 19 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 20 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 21 | 2406-029 | PANEL,BELLY | 1 | $90.95 | |
| 22 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 23 | 1506-615 | BUMPER,REAR-ASSY (LE BLACK) | 1 | $328.95 | |
| 24 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 | |
| 25 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 26 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 27 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 28 | 1506-380 | FOOTREST,RH-PTD BLACK | 1 | $79.95 | |
| 28 | 1506-379 | FOOTREST,LH-PTD BLACK | 1 | $79.95 | |
| 29 | 1406-298 | ROD, SUPPORT | 1 | $10.95 | |
| 30 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 |
