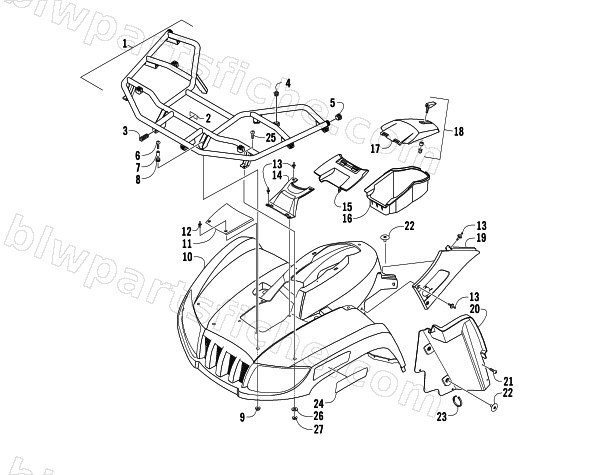

2006 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA — FRONT BODY PANEL ASSEMBLY
2006 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-883 | R/B 1436-124 | 1 | $360.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 2406-014 | BUSHING,RACK FRAME | 1 | $2.47 | |
| 4 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 5 | 1441-049 | PLUG,PLASTIC(1.00" Round Tube) | 1 | $1.78 | |
| 6 | 0423-362 | SCREW, MACH-TSTH M8-1.25 X 30 EM- BLK | 1 | $8.21 | |
| 7 | 0423-463 | SPACER,STEEL | 1 | $3.57 | |
| 8 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 9 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 10 | 0518-041 | FENDER,FRONT - ASSEMBLY (BLACK) | 1 | $899.95 | |
| 11 | 1406-358 | RADIATOR-ACCESS | 1 | $16.49 | |
| 12 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 13 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 14 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 15 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 16 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 17 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 | |
| 18 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 19 | 1406-313 | KNEEPAD,RH-BLACK | 1 | $158.95 | |
| 19 | 1406-314 | KNEEPAD,LH-BLACK | 1 | $158.95 | |
| 20 | 1406-354 | PANEL, SPLASH - RH | 1 | $79.95 | |
| 20 | 2506-383 | PANEL,SPLASH-LH ASSEMBLY | 1 | $90.95 | |
| 21 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 22 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 23 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 24 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 24 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 25 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 26 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 27 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 |
