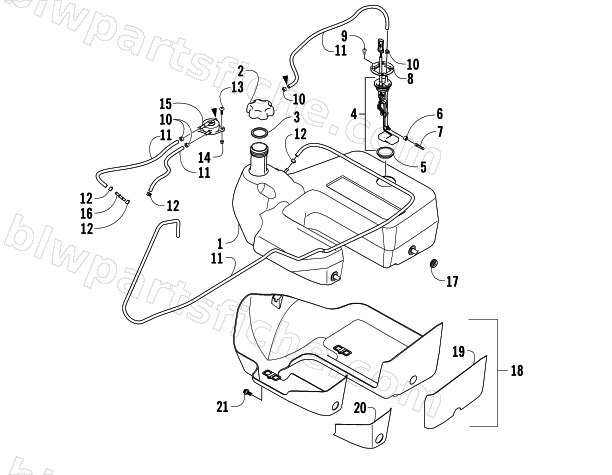

2006 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA — GAS TANK ASSEMBLY
2006 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0437-042 | KIT,FUEL TANK REPLACEMENT-500 | 1 | $213.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 0570-251 | SENDER,FUEL LEVEL-KIT | 1 | $150.95 | |
| 5 | 0470-521 | SEAL, FUEL LEVEL SENDER | 1 | $3.16 | |
| 6 | 0423-603 | CLAMP,HOSE-.31 DIA | 1 | $3.57 | |
| 7 | 0470-475 | FILTER, FUEL | 1 | $16.49 | |
| 8 | 0470-639 | MOUNT,FUEL LEVEL SENDER | 1 | $4.82 | |
| 9 | 1623-158 | SCREW,PLASTITE-TSPNH 1/4-10X.500 Z&BLK | 1 | $0.95 | |
| 10 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 11 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 12 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 13 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 0470-758 | PUMP,FUEL | 1 | $69.95 | |
| 16 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 | |
| 17 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 18 | 0570-081 | SHIELD,FUEL TANK-ASSEMBLY | 1 | $126.95 | |
| 19 | 0470-499 | SHIELD,HEAT | 1 | $54.95 | |
| 20 | 0470-498 | SHIELD,HEAT | 1 | $33.95 | |
| 21 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 |
