2006 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA — SECONDARY DRIVE ASSEMBLY
2006 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

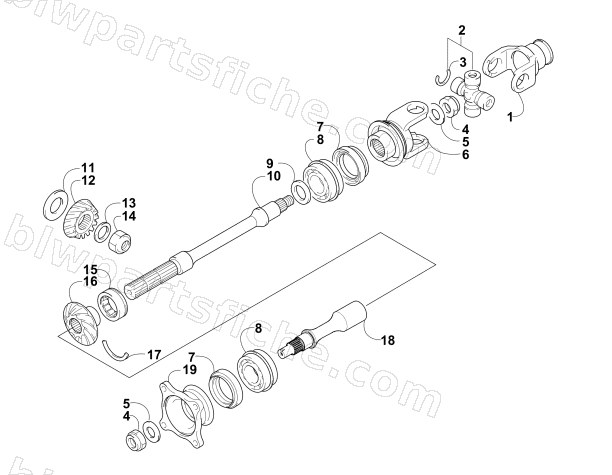

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0819-063 | YOKE,PROPELLER SHAFT-ASSY | 1 | $66.95 | |
| 2 | 1402-164 | CROSS, UNIVERSAL(20mm)-SET | 1 | $22.01 | |
| 3 | 0423-450 | RING,RETAINING-CROSS | 1 | $3.02 | |
| 4 | 0827-013 | NUT,HEX SHOULDER M16X1.5 | 1 | $3.02 | |
| 5 | 0828-020 | WASHER, STEEL, 16.3 x 30 x 3 | 1 | $3.30 | |
| 6 | 0819-061 | YOKE,DRIVE OUTPUT-FRONT ASSY | 1 | $69.95 | |
| 7 | 0830-043 | SEAL,OIL-DRIVEN SHAFT | 1 | $6.89 | |
| 8 | 0832-017 | R/B 0832-107 | 1 | $125.95 | |
| 9 | 0828-021 | SHIM, 25 x 34 x .25 | 1 | $2.47 | |
| 9 | 0828-022 | SHIM, 25 x 34 x .30 | 1 | $8.21 | |
| 9 | 0828-023 | SHIM, 25 X 34 X 0.35 MM | 1 | $17.87 | |
| 9 | 0828-024 | SHIM,. 25 x 34 x .90 | 1 | $17.87 | |
| 9 | 0828-025 | SHIM, 25 x 34 x .95 | 1 | $17.87 | |
| 9 | 0828-026 | SHIM, 25 x 34 x 1.00 | 1 | $17.87 | |
| 9 | 0828-027 | SHIM, 25 x 34 x 1.05 | 1 | $17.87 | |
| 9 | 0828-028 | SHIM, 25 x 34 x 1.10 | 1 | $16.49 | |
| 9 | 0828-029 | SHIM, 25 x 34 x 1.15 | 1 | $17.87 | |
| 10 | 0819-089 | SHAFT,SECONDARY DRIVEN-FRONT | 1 | $217.95 | |
| 11 | 0828-030 | SHIM, 24 x 48 x .25 | 1 | $4.54 | |
| 11 | 0828-031 | SHIM, 24 x 48 x .30 | 1 | $4.54 | |
| 11 | 0828-032 | SHIM, 24 x 48 x .35 | 1 | $17.87 | |
| 11 | 0828-033 | SHIM, 24 x 48 x .90 | 1 | $5.92 | |
| 11 | 0828-018 | SHIM, 24 x 48 x .95 | 1 | $4.54 | |
| 11 | 0828-062 | SHIM, 24 x 48 x 1.00 | 1 | $17.87 | |
| 11 | 0828-063 | SHIM, 24 x 48 x 1.05 | 1 | $17.87 | |
| 11 | 0828-064 | SHIM, 24 x 48 x 1.10 | 1 | $17.87 | |
| 11 | 0828-065 | SHIM, 24 x 48 x 1.15 | 1 | $19.25 | |
| 12 | 0819-001 | GEAR, (USE 0822-146-H1, 0822-147-H2) | 1 | $130.95 | |
| 13 | 0828-019 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $8.21 | |
| 14 | 0827-012 | NUT,HEX COLLARED (M20 X1.5 ) | 1 | $20.63 | |
| 15 | 0832-016 | BEARING, DRIVEN GEAR | 1 | $50.95 | |
| 16 | 0819-002 | GEAR,(USE 0822-146-H1, 0822-147-H2) | 1 | $180.95 | |
| 17 | 0819-011 | RING, DRIVEN BEARING | 1 | $17.87 | |
| 18 | 0819-053 | SHAFT, SECONDARY DRIVEN - REAR | 1 | $82.95 | |
| 19 | 0819-005 | FLANGE, OUTPUT JOINT - REAR, ASSEMBLY | 1 | $69.95 |
