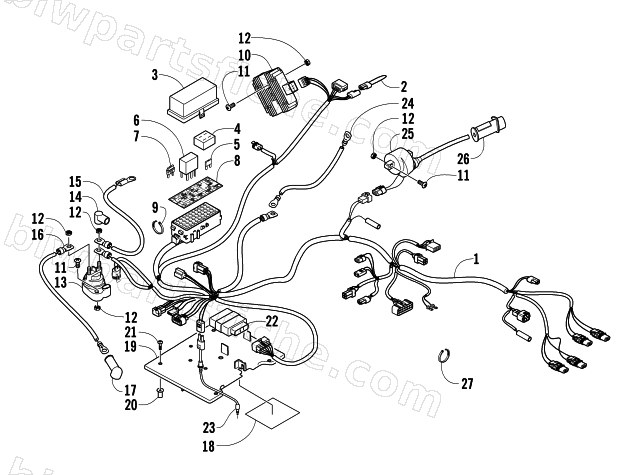

2006 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA — WIRING HARNESS ASSEMBLY
2006 650 H1 AUTOMATIC TRANSMISSION 4X4 SE CA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-186 | HARNESS/DIA,MAIN 06 650 H1 | 1 | $994.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 1411-130 | DECAL,POWER DISTRIBUTION MODULE | 1 | $17.95 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 13 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 14 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 15 | 0445-053 | CABLE,SOLENOID-STARTER (19" RED #8) | 1 | $37.95 | |
| 16 | 0445-055 | CABLE,BATTERY-SOLENOID (8.5" RED #8) | 1 | $20.63 | |
| 17 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 18 | 0412-291 | SHIELD,HEAT (PSA) | 1 | $9.59 | |
| 19 | 1406-787 | TRAY,ELECTRICAL (BOOT CDI) | 1 | $26.95 | |
| 20 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 21 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 22 | 0824-038 | CDI UNIT,RL (07 650-H1 FIS) | 1 | $689.95 | |
| 23 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 24 | 0445-054 | CABLE,BATTERY-ENGINE (27" BLK #8) | 1 | $30.95 | |
| 25 | 0824-036 | COIL,IGNITION-ASSY | 1 | $252.95 | |
| 26 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 27 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
