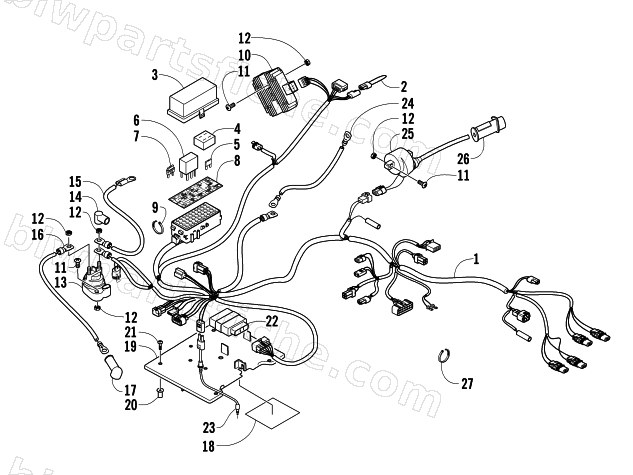

2006 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 SE — WIRING HARNESS ASSEMBLY
2006 650 H1 AUTOMATIC TRANSMISSION 4X4 SE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-186 | HARNESS/DIA,MAIN 06 650 H1 | 1 | $994.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 1411-130 | DECAL,POWER DISTRIBUTION MODULE | 1 | $17.95 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 13 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 14 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 15 | 0445-053 | CABLE,SOLENOID-STARTER (19" RED #8) | 1 | $37.95 | |
| 16 | 0445-055 | CABLE,BATTERY-SOLENOID (8.5" RED #8) | 1 | $20.63 | |
| 17 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 18 | 0412-291 | SHIELD,HEAT (PSA) | 1 | $9.59 | |
| 19 | 1406-787 | TRAY,ELECTRICAL (BOOT CDI) | 1 | $26.95 | |
| 20 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 21 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 22 | 0824-038 | CDI UNIT,RL (07 650-H1 FIS) | 1 | $689.95 | |
| 23 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 24 | 0445-054 | CABLE,BATTERY-ENGINE (27" BLK #8) | 1 | $30.95 | |
| 25 | 0824-036 | COIL,IGNITION-ASSY | 1 | $252.95 | |
| 26 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 27 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
