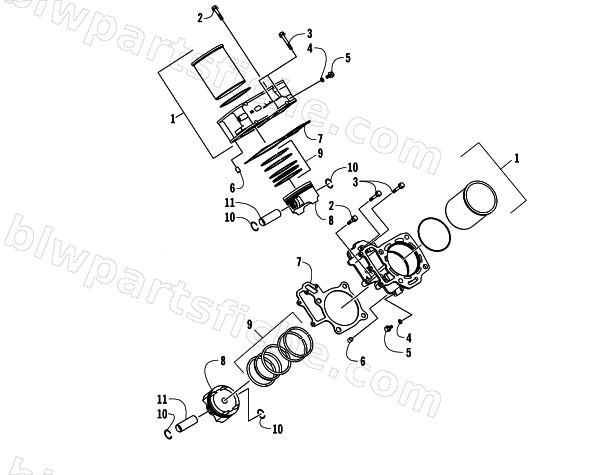

CYLINDER/PISTON ASSEMBLY
2006 650 V-TWIN AUTOMATIC TRANSMISSION 4X4 FIS CA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3201-062 | CYLINDER-ENGINE,FR | 1 | $793.95 | |
| 1 | 3201-063 | CYLINDER-ENGINE,RR | 1 | $793.95 | |
| 2 | 3201-146 | BOLT-FLANGED-SMALL | 1 | $6.95 | |
| 3 | 3201-147 | BOLT-FLANGED-SMALL | 1 | $4.95 | |
| 4 | 3201-281 | WASHER,6.2X11X1 | 1 | $6.95 | |
| 6 | 3201-307 | PIN,10.1X12X14 | 1 | $10.95 | |
| 7 | 3201-069 | GASKET,CYLINDER BASE | 1 | $29.95 | |
| 8 | 3201-100 | PISTON-ENGINE | 1 | $164.95 | |
| 8 | 3201-104 | PISTON-ENGINE L,O/S 0.50 | 1 | $174.95 | |
| 9 | 3201-102 | RING-SET-PISTON | 1 | $82.95 | |
| 9 | 3201-103 | RING-SET-PISTON L,O/S 0.50 | 1 | $87.95 | |
| 10 | 3201-299 | RING-SNAP | 1 | $3.95 | |
| 11 | 3201-101 | PIN-PISTON | 1 | $29.95 |
