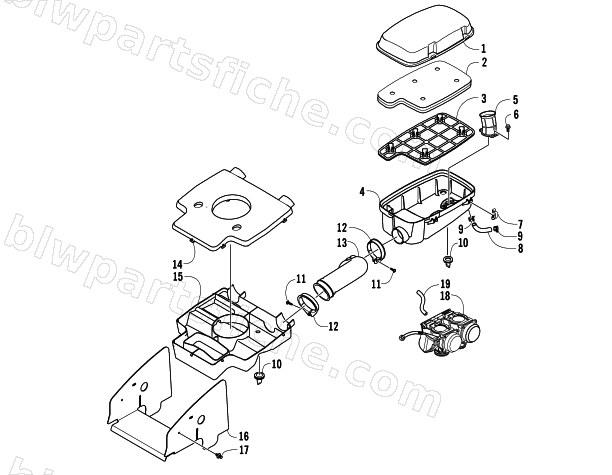

2006 Arctic Cat 650 V-TWIN AUTOMATIC TRANSMISSION 4X4 FIS LIMITED EDITION — AIR INTAKE ASSEMBLY
2006 650 V-TWIN AUTOMATIC TRANSMISSION 4X4 FIS LIMITED EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-877 | R/B 1470-221 | 1 | $99.95 | |
| 2 | 0470-663 | FILTER, AIR | 1 | $42.95 | |
| 3 | 0470-493 | SCREEN,AIR FILTER | 1 | $50.95 | |
| 4 | 0470-485 | AIRBOX,BOTTOM | 1 | $104.95 | |
| 5 | 3201-001 | DUCT,AIR FUNNEL | 1 | $13.95 | |
| 6 | 3201-002 | BOLT,5X12 | 1 | $2.95 | |
| 7 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 8 | 0410-171 | HOSE,VENT-CRANKCASE | 1 | $51.95 | |
| 9 | 0623-941 | CLAMP,HOSE(NORMA 24) COOLING | 1 | $5.95 | |
| 10 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 11 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 12 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 13 | 0470-529 | BOOT,AIR IN-CARB | 1 | $64.95 | |
| 14 | 0413-091 | DIVERTER,AIR-IN | 1 | $40.95 | |
| 15 | 0413-093 | DIVERTER,AIR INTAKE-BOTTOM | 1 | $42.95 | |
| 16 | 1406-785 | SHROUD,SPLASH | 1 | $82.95 | |
| 17 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 18 | 0470-497 | CARB SET, KEIHIN (TWIN 32mm) | 1 | $1,372.95 | |
| 19 | 0510-592 | HOSE,CARB DRAIN | 1 | $6.75 |
