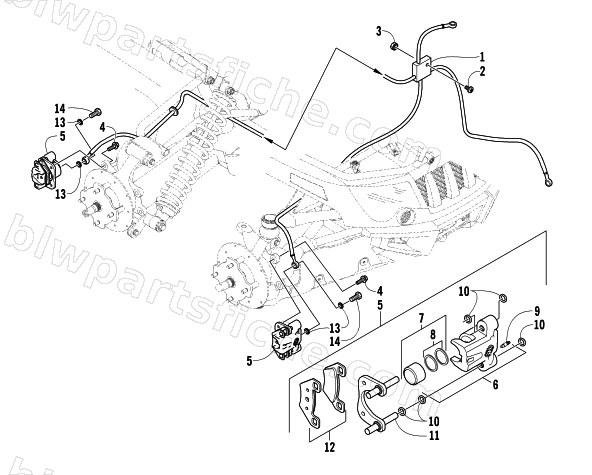

HYDRAULIC BRAKE ASSEMBLY
2006 650 V-TWIN AUTOMATIC TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-627 | HOSE,BRAKE-FAB ASSY (FIS) | 1 | $429.95 | |
| 2 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 3 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 4 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 5 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 5 | 1436-423 | R/B 2502-575 | 1 | $432.95 | |
| 6 | 1436-160 | KIT-HOUSING,PISTONS,SEALS,BLEADER-RH | 1 | $266.95 | |
| 6 | 1436-161 | KIT-HOUSING,PISTONS,SEALS,BLEADER-LH | 1 | $268.95 | |
| 7 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 8 | 0502-607 | SET,SEALS-CALIPER (FC) | 1 | $30.95 | |
| 9 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 10 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 11 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 12 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 13 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 14 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 |
