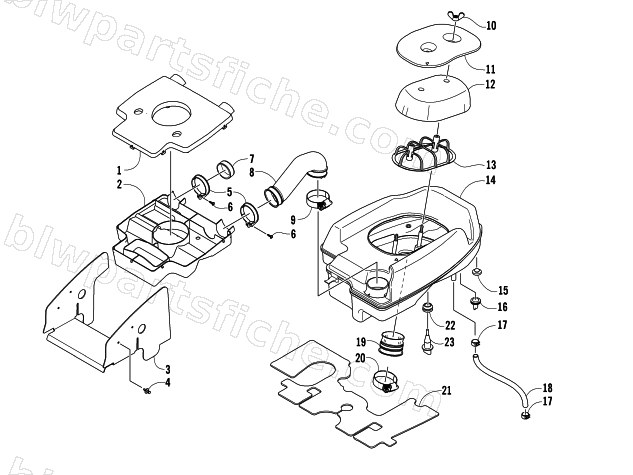

2006 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 FIS SE — AIR INTAKE ASSEMBLY
2006 700 AUTOMATIC TRANSMISSION 4X4 FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-091 | DIVERTER,AIR-IN | 1 | $40.95 | |
| 2 | 0413-093 | DIVERTER,AIR INTAKE-BOTTOM | 1 | $42.95 | |
| 3 | 1406-785 | SHROUD,SPLASH | 1 | $82.95 | |
| 4 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 5 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 6 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 7 | 0413-096 | CAP-AIR IN,BELT | 1 | $20.63 | |
| 8 | 0470-583 | BOOT,AIR IN-AIR BOX | 1 | $58.95 | |
| 9 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 10 | 0423-716 | WINGNUT,NYLOC-M6X1.0 | 1 | $3.85 | |
| 11 | 0470-832 | LID,AIR BOX-FABRICATED | 1 | $42.95 | |
| 12 | 0470-580 | FILTER, AIR | 1 | $47.95 | |
| 13 | 0470-731 | CAGE,AIR FILTER | 1 | $49.95 | |
| 14 | 0570-226 | BOTTOM,AIRBOX-SERV ASSY | 1 | $248.95 | |
| 15 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 16 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 17 | 0423-045 | CLAMP,HOSE-SPRING(.685"ID X.38") | 1 | $1.78 | |
| 18 | 0410-103 | HOSE,VENT-CRANKCASE | 1 | $20.63 | |
| 19 | 0470-582 | BOOT,THROTTLE BODY | 1 | $20.95 | |
| 20 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 21 | 2406-149 | SHIELD,AIR BOX | 1 | $15.11 | |
| 22 | 3006-657 | GROMMET,AIR TEMP SENSOR | 1 | $16.95 | |
| 23 | 3006-656 | SENSOR, AIR TEMP | 1 | $198.95 |
