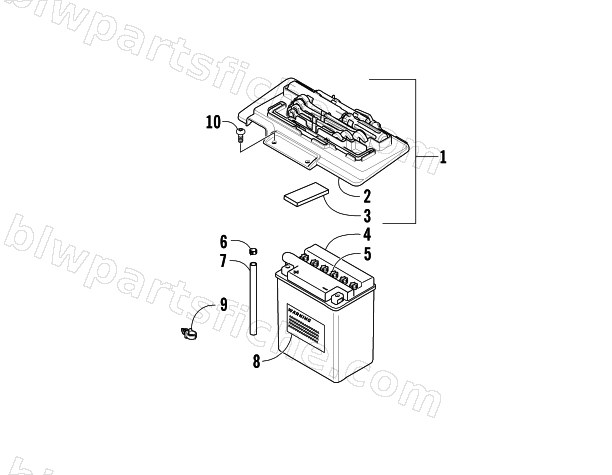

2006 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 FIS SE — BATTERY ASSEMBLY
2006 700 AUTOMATIC TRANSMISSION 4X4 FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 0 | 0645-198 | HWR,BATTERY-KIT | 1 | $6.89 | |
| 1 | 5993-040 | TRAY,TOOL-ASSY | 1 | $100.95 | |
| 2 | 4406-136 | COVER,BATTERY/TOOL TRAY | 1 | $69.95 | |
| 3 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 4 | 0745-047 | R/B 0745-423 | 1 | $167.95 | |
| 5 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 6 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 7 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 8 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 9 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 10 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 |
