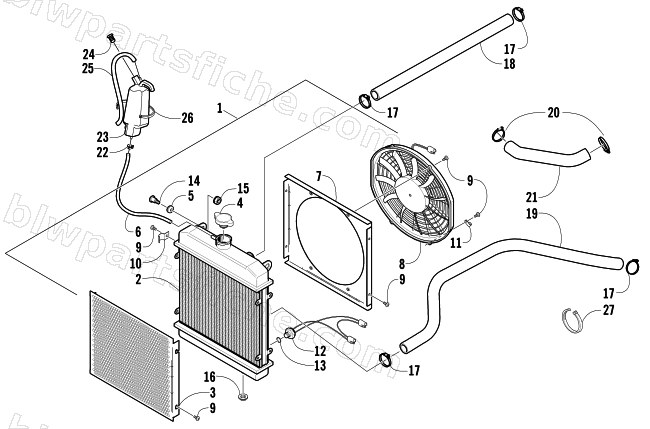

COOLING ASSEMBLY
2006 700 AUTOMATIC TRANSMISSION 4X4 FIS SE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-117 | RADIATOR-ASSEMBLY | 1 | $677.95 | |
| 2 | 0413-184 | RADIATOR,FABRICATED | 1 | $429.95 | |
| 3 | 0413-007 | SCREEN,RADIATOR | 1 | $85.95 | |
| 4 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 5 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 6 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 7 | 0413-046 | SHROUD, FAN | 1 | $72.95 | |
| 8 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 9 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 10 | 0423-351 | CLIP, HOSE | 1 | $4.13 | |
| 11 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 12 | 0413-045 | SWITCH, SENSOR-TEMP | 1 | $66.95 | |
| 13 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 14 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 17 | 0423-496 | CLAMP,HOSE- WORM 19-38mmX12.7mm | 1 | $2.47 | |
| 18 | 0410-105 | HOSE,COOLANT-UPPER | 1 | $49.95 | |
| 19 | 0410-055 | HOSE, COOLANT-LOWER | 1 | $69.95 | |
| 20 | 3006-324 | CLAMP '02 440 SNO PRO | 1 | $29.95 | |
| 21 | 3410-021 | HOSE,CROSSOVER | 1 | $36.95 | |
| 22 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 23 | 0413-086 | BOTTLE,OVERFLOW | 1 | $63.95 | |
| 24 | 0413-087 | STOPPER,COOLANT | 1 | $4.54 | |
| 25 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 26 | 0623-316 | CABLE TIE,SGL LOOP-.500X14-BLK (RTE1400) | 1 | $10.97 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
