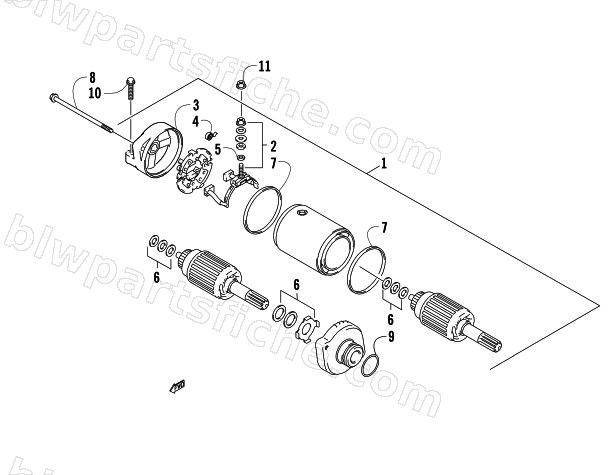

2006 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 FIS SE — STARTER MOTOR ASSEMBLY
2006 700 AUTOMATIC TRANSMISSION 4X4 FIS SE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3545-020 | MOTOR,STARTER ASSEMBLY | 1 | $314.95 | |
| 2 | 3008-094 | TERMINAL, SET BRUSH | 1 | $93.95 | |
| 4 | 3008-095 | HOLDER SET, BRUSH | 1 | $88.95 | |
| 6 | 3008-099 | SHIM SET, STARTING MOTOR | 1 | $20.63 | |
| 7 | 3008-553 | O-RING, STARTER MOTOR | 1 | $19.25 | |
| 8 | 3423-085 | BOLT | 1 | $17.87 | |
| 9 | 3423-272 | O RING,D:3,ID:24.5 | 1 | $3.44 | |
| 10 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 11 | 3423-195 | NUT,STARTER MOTOR,6MM | 1 | $2.61 |
