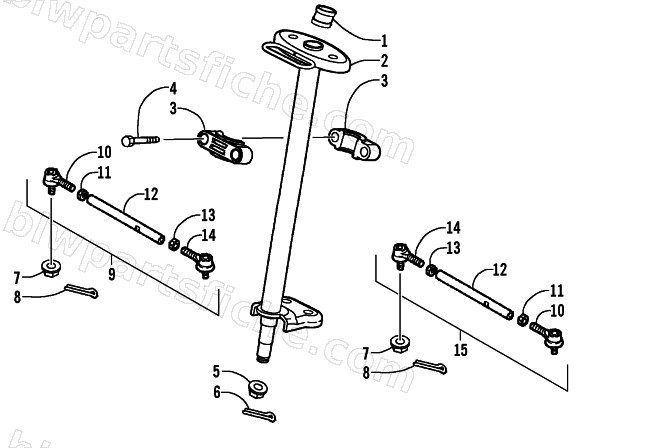

STEERING POST ASSEMBLY
2006 90 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-497 | SLEEVE STEM | 1 | $4.95 | |
| 2 | 3303-573 | POST, STEERING -50 | 1 | $94.95 | |
| 3 | 3303-213 | HOLDER STEM STRG | 1 | $13.73 | |
| 4 | 3304-559 | R/B 3307-203 | 1 | $2.95 | |
| 5 | 3304-032 | NUT FLANGE 14MM | 1 | $6.34 | |
| 6 | 3303-470 | PIN SPLIT 3.0*25 30251 CPN | 1 | $1.37 | |
| 7 | 3303-266 | NUT U FLANGE 10MM | 1 | $2.06 | |
| 8 | 3303-621 | PIN SPLIT 2.5*20 | 1 | $1.37 | |
| 9 | 3303-448 | ROD ASSY R STRG | 1 | $87.95 | |
| 10 | 3303-223 | JOINT R BALL | 1 | $45.95 | |
| 11 | 3303-327 | NUT HEX LH 10MM | 1 | $1.50 | |
| 12 | 3303-222 | ROD COMP STEERING **(0) C.2003.11.13 | 1 | $12.95 | |
| 13 | 3303-326 | NUT HEX 10MM | 1 | $1.50 | |
| 14 | 3303-224 | JOINT L BALL | 1 | $45.95 | |
| 15 | 3303-449 | ROD ASSY L STRG | 1 | $87.95 |
