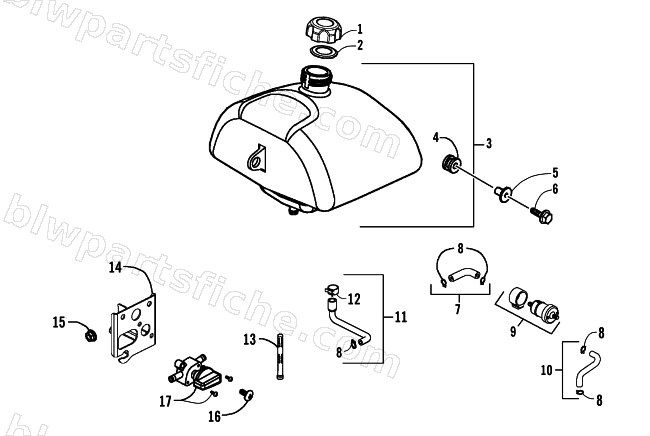

2006 Arctic Cat 90 UTILITY — GAS TANK ASSEMBLY
2006 90 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-067 | CAP ASSY FUEL FILLER | 1 | $17.87 | |
| 2 | 3303-068 | SEAL, GAS TANK CAP | 1 | $2.61 | |
| 3 | 3303-065 | TANK COMP FUEL | 1 | $90.95 | |
| 4 | 3303-406 | RUBBER FUEL TANK | 1 | $3.57 | |
| 5 | 3303-226 | COLLAR FR FENDER | 1 | $1.64 | |
| 6 | 3303-383 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 7 | 3303-353 | TUBE ASSY FUEL | 1 | $6.95 | |
| 8 | 3303-349 | CLIP B10 TUBE | 1 | $0.95 | |
| 9 | 3303-699 | STRAINER ASSY FUEL | 1 | $20.63 | |
| 10 | 3303-354 | TUBE ASSY FUEL | 1 | $6.95 | |
| 11 | 3303-348 | CLIP B8 TUBE | 1 | $0.95 | |
| 12 | 3303-058 | SCREEN FUEL STRAINER | 1 | $4.82 | |
| 13 | 3303-066 | TUBE ASSY FUEL TANK | 1 | $4.82 | |
| 14 | 3303-351 | CLAMP D13 TUBE | 1 | $1.78 | |
| 15 | 3303-070 | STAY FUEL COCK | 1 | $11.95 | |
| 16 | 3303-331 | NUT FLANGE 6MM | 1 | $0.55 | |
| 17 | 3303-316 | SCREW PAN 5*16 | 1 | $1.09 | |
| 18 | 3303-057 | R/B 3307-093 | 1 | $24.95 |
