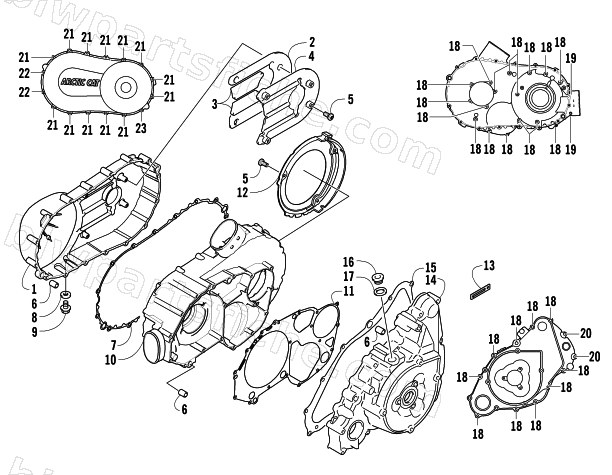

2006 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY
2006 PROWLER XT 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-088 | COVER,CVT,H1 | 1 | $227.95 | |
| 2 | 0806-015 | DAMPER, V-BELT COVER NO.1 | 1 | $20.63 | |
| 3 | 0806-016 | DAMPER, V-BELT COVER NO.2 | 1 | $16.95 | |
| 4 | 0806-017 | PLATE, V-BELT COVER | 1 | $19.95 | |
| 5 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 | |
| 6 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 7 | 0830-174 | GASKET,CVT COVER | 1 | $30.95 | |
| 8 | 0830-013 | WASHER,CRUSH, 8 x 16 x 1 | 1 | $1.09 | |
| 9 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 10 | 0837-006 | KIT,CLUTCH COVER | 1 | $454.95 | |
| 11 | 0830-116 | GASKET,COVER-CLUTCH | 1 | $50.95 | |
| 12 | 0806-048 | SEAL,AIR INTAKE | 1 | $30.95 | |
| 13 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 14 | 0806-127 | KIT, COVER-MAGNETO | 1 | $251.95 | |
| 15 | 0830-128 | GASKET,MAGNETO COVER | 1 | $23.39 | |
| 16 | 0806-022 | PLUG, TDC CHECK | 1 | $38.95 | |
| 17 | 0830-015 | WASHER, CRUSH, 16 x 22 x 2 | 1 | $1.92 | |
| 18 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 19 | 8468-675 | SCREW,MACH-TSPNH M6X1.0X75 CL8.8 BLK | 1 | $1.09 | |
| 20 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 21 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 22 | 8468-655 | SCREW,MACH-TSPNH M6X1.0X55 CL8.8 BLK | 1 | $1.30 | |
| 23 | 8470-645 | SCREW,MACH-TSFH M6X1.0X45 CL8.8 Z&Y | 1 | $1.09 |
