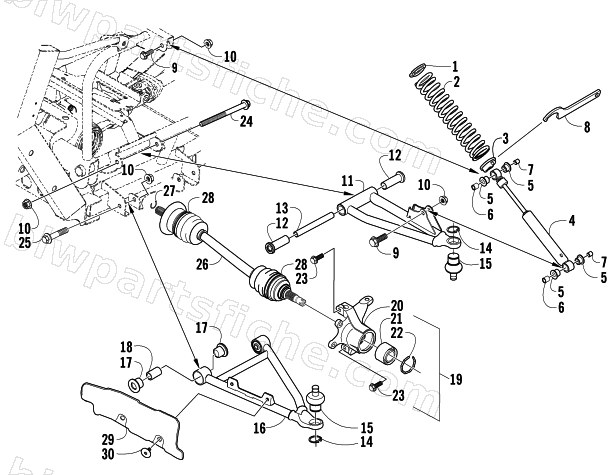

2006 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — FRONT SUSPENSION ASSEMBLY
2006 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 2 | 0403-161 | SPRING,FRONT-BLACK (220LB/IN X 13.3) | 1 | $66.95 | |
| 3 | 0403-395 | CAM,ADJUSTER-SPRING | 1 | $20.63 | |
| 4 | 0403-147 | SHOCK,FRONT-ASSY | 1 | $122.95 | |
| 5 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 6 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 7 | 0404-116 | SLEEVE,SHOCK | 1 | $2.06 | |
| 8 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 | |
| 9 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 10 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 11 | 0503-416 | A-ARM,FRONT UPPER RH-BLACK-ASSY | 1 | $260.95 | |
| 11 | 0503-417 | A-ARM,FRONT UPPER LH-BLACK-ASSY | 1 | $260.95 | |
| 12 | 0403-289 | BUSHING,UPPER A-ARM SUSPENSION | 1 | $4.13 | |
| 13 | 0403-439 | COLLAR,SUSPENSION BUSHING-UPPER A-ARM | 1 | $17.87 | |
| 14 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 15 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 16 | 0503-376 | A-ARM,FRONT LOWER-RH-ASSY (BLACK) | 1 | $260.95 | |
| 16 | 0503-377 | A-ARM,FRONT LOWER-LH-ASSY (BLACK) | 1 | $260.95 | |
| 16 | 0503-220 | A-ARM,FRONT LOWER RH-ASSEMBLY | 1 | $220.95 | |
| 16 | 0503-221 | A-ARM,FRONT LOWER LH-ASSEMBLY | 1 | $220.95 | |
| 17 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 18 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 19 | 0505-580 | KNUCKLE,STEERING-RH ASSY | 1 | $239.95 | |
| 19 | 0505-581 | KNUCKLE,STEERING-LH ASSY | 1 | $239.95 | |
| 21 | 1402-027 | BEARING, WHEEL | 1 | $43.95 | |
| 22 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 23 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 24 | 0423-334 | SCREW, CAP-HFH M10-1.25 X165 Z&Y CL10.9 | 1 | $5.65 | |
| 25 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 26 | 1502-939 | KIT,HALFSHAFT (1502-802) | 1 | $454.95 | |
| 26 | 1502-940 | KIT,HALFSHAFT (1502-803) | 1 | $454.95 | |
| 27 | 0423-844 | CLIP,RETAINING-INBOARD | 1 | $1.23 | |
| 28 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 | |
| 29 | 1441-002 | GUARD,BOOT-MARSH GREEN RH | 1 | $26.95 | |
| 29 | 1441-003 | GUARD,BOOT-MARSH GREEN LH | 1 | $26.95 | |
| 29 | 0441-752 | GUARD,BOOT-RH RED | 1 | $41.95 | |
| 29 | 0441-753 | GUARD,BOOT-LH RED | 1 | $38.95 | |
| 29 | 0441-756 | GUARD,BOOT-RH LIME GREEN | 1 | $100.95 | |
| 29 | 0441-757 | GUARD,BOOT-LH LIME GREEN | 1 | $100.95 | |
| 30 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 |
