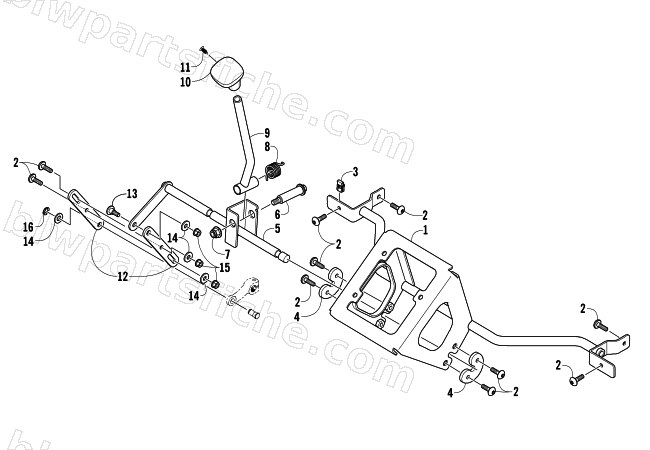

2006 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — SHIFTING ASSEMBLY
2006 PROWLER XT 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-525 | MOUNT,SHIFTER-PAINTED BLACK | 1 | $174.95 | |
| 2 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 1402-275 | RETAINER ,SHIFT LINKAGE | 1 | $2.88 | |
| 5 | 1506-811 | AXLE,SHIFT-BLACK | 1 | $66.95 | |
| 6 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 7 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 1402-668 | SPRING,SHIFT | 1 | $9.95 | |
| 9 | 0437-060 | KIT-LEVER,SHIFT-BLACK/SPRING UPDATED | 1 | $132.95 | |
| 10 | 0402-843 | KNOB,SHIFT | 1 | $16.49 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 2406-031 | LINKAGE,SHIFT-BLACK | 1 | $11.95 | |
| 13 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 14 | 0623-094 | WASHER, FLAT - 5/16 ID | 1 | $0.40 | |
| 15 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 16 | 0124-057 | E-RING | 1 | $1.64 |
