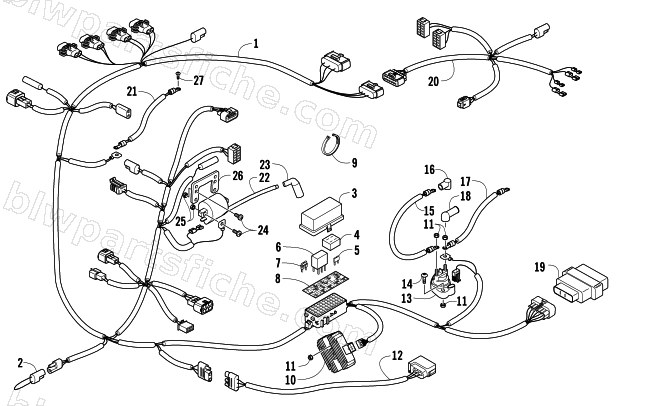

2006 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — WIRING HARNESS ASSEMBLY
2006 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-167 | HARNESS/DIA, MAIN 06 PROWLER | 1 | $744.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 1411-191 | DECAL,POWER DISTRIBUTION MODULE | 1 | $16.95 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 0486-176 | HARNESS,ADAPTER-TAILLIGHT 06 PROWLER | 1 | $37.95 | |
| 13 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 14 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 15 | 0445-049 | CABLE,BATTERY-SOLENOID (18" RED #6) | 1 | $27.95 | |
| 16 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 17 | 0445-051 | CABLE,RELAY-STARTER MOTOR | 1 | $36.95 | |
| 18 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 19 | 0824-048 | CDI UNIT,SL-SS | 1 | $736.95 | |
| 20 | 0486-191 | HARNESS,CONSOLE 06 PROWLER | 1 | $126.95 | |
| 21 | 0445-050 | CABLE,BATTERY-ENGINE (40" BLK #6) | 1 | $42.95 | |
| 22 | 0824-023 | COIL,IGNITION-ASSY (KOKUSAN) | 1 | $252.95 | |
| 23 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 24 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 25 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 26 | 2406-266 | PAD,ISOLATOR-COIL | 1 | $6.95 | |
| 27 | 8470-645 | SCREW,MACH-TSFH M6X1.0X45 CL8.8 Z&Y | 1 | $1.09 |
