2007 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — FRAME AND RELATED PARTS

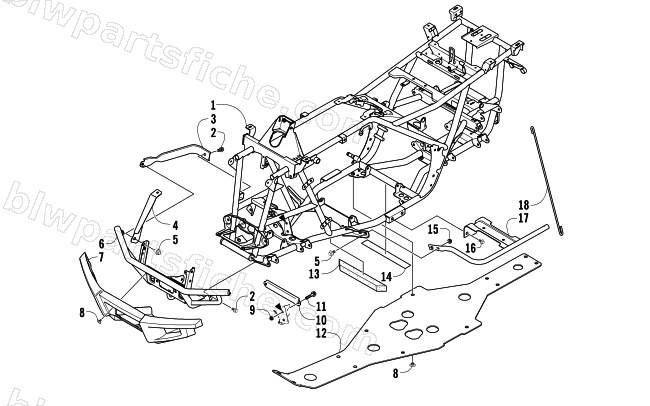

2007 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-039 | FRAME - PTD BLACK (FIS II SINGLES 07) | 1 | $1,826.95 | |
| 2 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 3 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 4 | 1506-686 | BRACKET,BUMPER-RH-BLACK | 1 | $26.95 | |
| 4 | 1506-687 | BRACKET,BUMPER-LH-BLACK | 1 | $26.95 | |
| 5 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 6 | 1506-684 | BUMPER,FRONT-BLACK | 1 | $208.95 | |
| 7 | 1406-868 | FASCIA,BUMPER-FRONT | 1 | $64.95 | |
| 8 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 9 | 1506-667 | STRAP,BUMPER SUPPORT-BLACK | 1 | $13.73 | |
| 10 | 1506-708 | BUMPER,LE-BLACK | 1 | $224.95 | |
| 11 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 12 | 8468-845 | SCREW,MACH-TSPNH M8X1.25X45 CL8.8 BLK | 1 | $4.26 | |
| 13 | 8424-805 | NUT,HEX FLG-M8X1.25 CL8 RIE BLK | 1 | $0.95 | |
| 14 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 15 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 16 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 17 | 1406-030 | PANEL,BELLY | 1 | $187.95 | |
| 18 | 1506-067 | FOAM, FRAME | 1 | $3.16 | |
| 19 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 20 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 21 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 22 | 1506-659 | FOOTREST,RH-PTD-BLACK | 1 | $79.95 | |
| 22 | 1506-660 | FOOTREST,LH-PTD-BLACK | 1 | $79.95 | |
| 23 | 2506-426 | ROD,SUPPORT-BLACK | 1 | $10.97 | |
| 24 | 1506-802 | BUMPER,REAR-ASSY (LE) | 1 | $248.95 | |
| 25 | 2406-045 | CAP,TUBE-1.375 IN OD | 1 | $3.95 |
