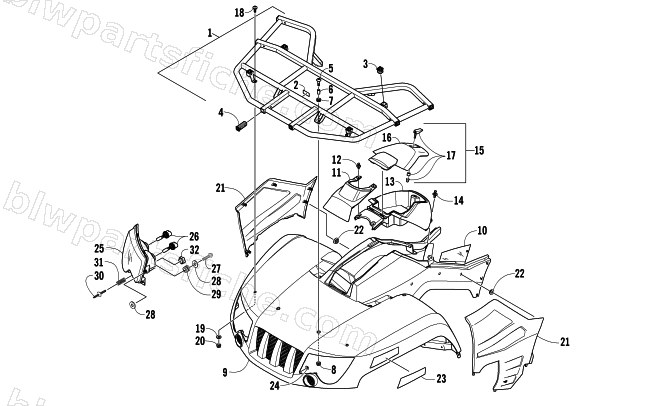

FRONT BODY PANEL ASSEMBLY
2007 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-766 | RACK,FR FRAME-ASSY(W/O FENCE) | 1 | $283.95 | |
| 1 | 1506-750 | RACK,FRONT FRAME-ASSY | 1 | $314.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 2406-014 | BUSHING,RACK FRAME | 1 | $2.47 | |
| 5 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 6 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 7 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 8 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 9 | 4506-529 | FENDER,FRONT RED-ASSY | 1 | $593.95 | |
| 9 | 4506-530 | FENDER,FRONT LIME-ASSY | 1 | $642.95 | |
| 10 | 0412-394 | SHIELD,HEAT | 1 | $3.16 | |
| 11 | 1406-867 | R/B 1406-972 | 1 | $18.95 | |
| 11 | 1406-971 | R/B 1406-972 | 1 | $18.95 | |
| 12 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 13 | 2416-237 | R/B 2416-240 | 1 | $56.95 | |
| 13 | 2416-239 | BOX,STORAGE-LIME GREEN | 1 | $58.95 | |
| 14 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 15 | 2506-235 | COVER,STORAGE BOX-W/LATCH | 1 | $58.95 | |
| 16 | 1406-862 | COVER,STORAGE BOX | 1 | $57.95 | |
| 17 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 18 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 19 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 20 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 21 | 2406-302 | PANEL,SIDE-RH | 1 | $66.95 | |
| 21 | 2406-303 | PANEL,SIDE-LH | 1 | $181.95 | |
| 22 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 23 | 1411-078 | REFLECTOR,FRONT-RH | 1 | $5.37 | |
| 23 | 1411-079 | REFLECTOR,FRONT-LH | 1 | $5.37 | |
| 24 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 25 | 0609-852 | HEADLIGHT-ASSY-RH | 1 | $185.95 | |
| 25 | 0609-853 | HEADLIGHT-ASSY-LH | 1 | $185.95 | |
| 26 | 0409-073 | BULB,HEADLIGHT(899) | 1 | $33.95 | |
| 27 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 28 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 29 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 30 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 31 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 32 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 |
