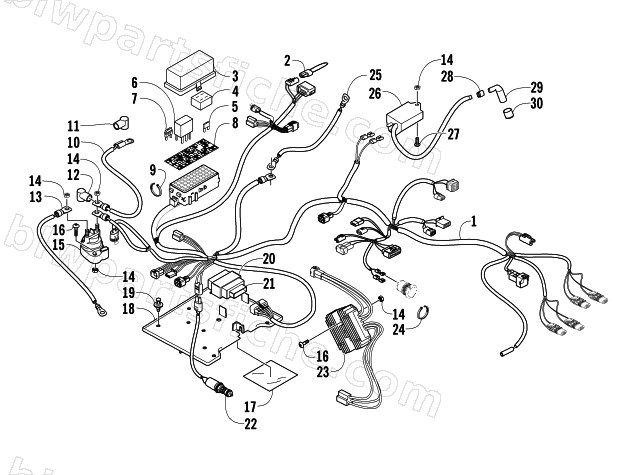

2007 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 FIS LE — WIRING HARNESS ASSEMBLY
2007 400 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-202 | HARNESS/DIA,MAIN(07 400 AUTO) | 1 | $929.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 0411-828 | DECAL,POWER DISTRIBUTION MODULE | 1 | $9.95 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0445-053 | CABLE,SOLENOID-STARTER (19" RED #8) | 1 | $37.95 | |
| 11 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 12 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 13 | 0445-055 | CABLE,BATTERY-SOLENOID (8.5" RED #8) | 1 | $20.63 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 16 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 17 | 0412-291 | SHIELD,HEAT (PSA) | 1 | $9.59 | |
| 18 | 1406-787 | TRAY,ELECTRICAL (BOOT CDI) | 1 | $26.95 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 3402-684 | CUSHION, CDI UNIT | 1 | $13.73 | |
| 21 | 3402-683 | CDI UNIT | 1 | $856.95 | |
| 22 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 23 | 3402-682 | RECTIFIER-ASSY | 1 | $454.95 | |
| 24 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 25 | 0445-054 | CABLE,BATTERY-ENGINE (27" BLK #8) | 1 | $30.95 | |
| 26 | 3430-055 | COIL ASSY, IGNITION | 1 | $180.95 | |
| 27 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 28 | 3430-009 | SEAL, HIGH TENSION CORD | 1 | $10.97 | |
| 29 | 3430-007 | CAP ASSY, SPARK PLUG | 1 | $23.39 | |
| 30 | 3430-008 | SEAL SPARK PLUG | 1 | $12.35 |
