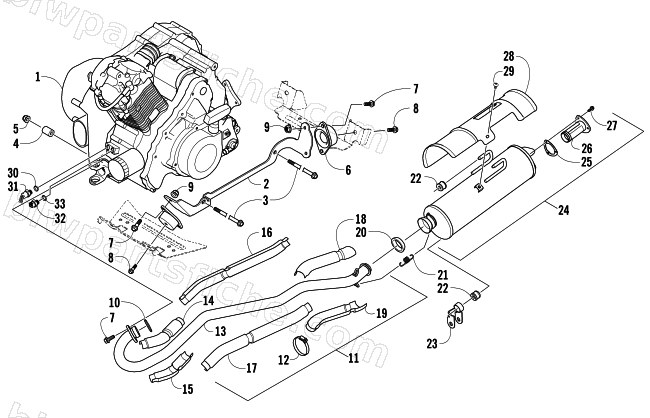

2007 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 TRV — ENGINE AND EXHAUST
2007 400 AUTOMATIC TRANSMISSION 4X4 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0462-036 | ENGINE ASSY(400DAFK2 0463-036) | 1 | $2,578.29 | |
| 2 | 1506-740 | BRACKET,ENGINE-RH-BLACK | 1 | $64.95 | |
| 2 | 1506-741 | BRACKET,ENGINE-LH-BLACK | 1 | $64.95 | |
| 3 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 4 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 5 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 6 | 2406-065 | MOUNT,RUBBER-ENGINE | 1 | $66.95 | |
| 7 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 8408-012 | SCREW,CAP-HFH M10X1.25X12 CL8.8 Z&Y | 1 | $12.35 | |
| 9 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 10 | 0412-007 | SEAL,EXHAUST PIPE | 1 | $17.87 | |
| 11 | 0512-262 | PIPE,EXHAUST-ASSEMBLY | 1 | $405.95 | |
| 12 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 13 | 0512-281 | PIPE,EXHAUST-BLACK | 1 | $264.95 | |
| 14 | 0412-292 | SHIELD,EXHAUST-UPPER | 1 | $35.95 | |
| 15 | 0412-293 | SHIELD,EXHAUST-LOWER | 1 | $42.95 | |
| 16 | 0412-294 | SHIELD,EXHAUST-INNER | 1 | $42.95 | |
| 17 | 0412-295 | SHIELD,EXHAUST-OUTER | 1 | $42.95 | |
| 18 | 0412-282 | SHIELD,EXHAUST | 1 | $30.95 | |
| 19 | 0412-283 | SHIELD,EXHAUST | 1 | $30.95 | |
| 20 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 21 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 22 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 23 | 1506-732 | CHANNEL,MUFFLER SUPPORT-BLACK | 1 | $23.39 | |
| 24 | 0512-306 | MUFFLER,PAINTED | 1 | $494.95 | |
| 25 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
| 26 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 27 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 28 | 0412-373 | COVER,MUFFLER | 1 | $45.95 | |
| 29 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 30 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 31 | 3430-033 | SWITCH, COOL FAN | 1 | $268.95 | |
| 32 | 3530-037 | SWITCH, OIL LAMP | 1 | $196.95 | |
| 33 | 3402-556 | GASKET, OIL LAMP SWITCH | 1 | $12.35 |
