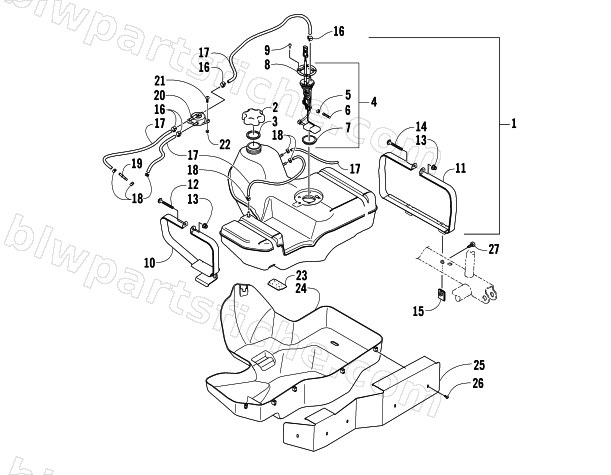

2007 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 TRV — GAS TANK ASSEMBLY
2007 400 AUTOMATIC TRANSMISSION 4X4 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-270 | TANK,FUEL-ASSEMBLY W/ STRAPS | 1 | $468.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 0570-254 | SENDER,FUEL LEVEL-KIT | 1 | $174.95 | |
| 5 | 0423-603 | CLAMP,HOSE-.31 DIA | 1 | $3.57 | |
| 6 | 0470-475 | FILTER, FUEL | 1 | $16.49 | |
| 7 | 0470-521 | SEAL, FUEL LEVEL SENDER | 1 | $3.16 | |
| 8 | 0470-639 | MOUNT,FUEL LEVEL SENDER | 1 | $4.82 | |
| 9 | 1623-158 | SCREW,PLASTITE-TSPNH 1/4-10X.500 Z&BLK | 1 | $0.95 | |
| 10 | 0570-168 | STRAP,FRONT-COATED | 1 | $71.95 | |
| 11 | 0570-169 | STRAP,REAR-COATED | 1 | $94.95 | |
| 12 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 8476-640 | SCREW,MACH-TSTRH M6X1.0X40 Z&Y | 1 | $15.11 | |
| 15 | 0470-536 | CLIP, FUEL TANK MOUNT | 1 | $16.49 | |
| 16 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 17 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 18 | 0423-670 | CLAMP,SNAP-9 MM | 1 | $3.44 | |
| 19 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 | |
| 20 | 0470-758 | PUMP,FUEL | 1 | $69.95 | |
| 21 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 22 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 23 | 0470-476 | PAD, FUEL TANK MOUNT | 1 | $4.26 | |
| 24 | 0470-479 | SHIELD, FUEL TANK | 1 | $52.95 | |
| 25 | 0470-474 | SHIELD, HEAT | 1 | $69.95 | |
| 26 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 27 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 |
