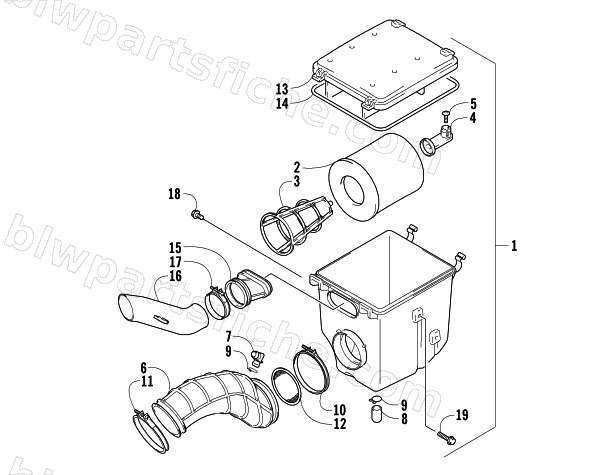

2007 Arctic Cat 400 DVX LIMITED EDITION — AIR CLEANER ASSEMBLY TONY STEWART LIMITED EDITION
2007 400 DVX LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3470-032 | CLEANER ASSY, AIR | 1 | $468.95 | |
| 2 | 3470-014 | FILTER | 1 | $64.95 | |
| 3 | 3470-015 | HOLDER | 1 | $23.39 | |
| 4 | 3470-016 | STOPPER,HOLDER | 1 | $20.95 | |
| 5 | 0693-505 | SCREW,M6X16 | 1 | $1.95 | |
| 6 | 3470-026 | TUBE, OUTLET | 1 | $91.95 | |
| 7 | 3470-025 | JOINT | 1 | $20.63 | |
| 8 | 3402-334 | PLUG, BREATHER | 1 | $20.95 | |
| 9 | 3423-313 | CLIP,M14 | 1 | $5.37 | |
| 10 | 3423-727 | CLAMP (CLEANER SIDE) | 1 | $16.49 | |
| 11 | 3423-726 | CLAMP (CARBURETOR SIDE) | 1 | $16.49 | |
| 12 | 3470-017 | TRAP,FLAME | 1 | $23.39 | |
| 13 | 3470-039 | CAP,AIR CLEANER | 1 | $87.95 | |
| 15 | 3470-027 | JOINT, INLET | 1 | $40.95 | |
| 16 | 3470-028 | DUCT, INLET | 1 | $74.95 | |
| 17 | 3423-503 | CLAMP | 1 | $26.95 | |
| 18 | 3007-392 | BOLT | 1 | $3.95 | |
| 19 | 3007-515 | BOLT,WATER INLET CONNECTOR | 1 | $3.16 |
