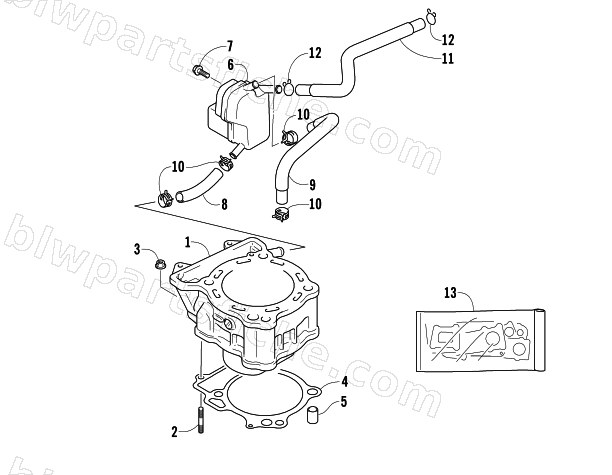

CYLINDER ASSEMBLY
2007 400 DVX LIMITED EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-844 | CYLINDER | 1 | $1,339.95 | |
| 2 | 3007-480 | BOLT,STUD | 1 | $2.06 | |
| 3 | 3007-373 | NUT | 1 | $3.16 | |
| 4 | 3402-845 | GASKET,CYLINDER | 1 | $37.95 | |
| 5 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 6 | 3502-010 | TANK COMP,OIL RETURN | 1 | $102.95 | |
| 7 | 3423-600 | BOLT | 1 | $2.06 | |
| 8 | 3406-002 | HOSE,BREATHER | 1 | $20.63 | |
| 9 | 3410-013 | HOSE,BREATHER | 1 | $42.95 | |
| 10 | 3006-855 | CLIP | 1 | $5.51 | |
| 11 | 3410-014 | HOSE,BREATHER | 1 | $47.95 | |
| 12 | 3423-724 | CLIP | 1 | $4.54 | |
| 13 | 3403-013 | GASKET SET,400 DVX | 1 | $279.95 |
