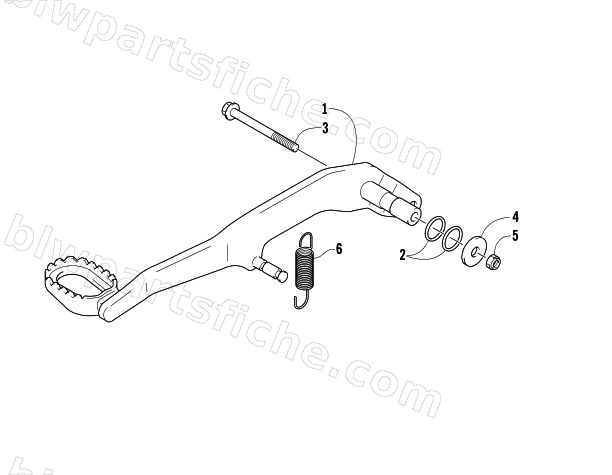

2007 Arctic Cat 400 DVX LIMITED EDITION — REAR BRAKE PEDAL ASSEMBLY
2007 400 DVX LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3406-007 | PEDAL COMP,BRAKE | 1 | $126.95 | |
| 2 | 3423-712 | O RING | 1 | $12.35 | |
| 3 | 3423-601 | BOLT | 1 | $3.02 | |
| 4 | 3423-674 | WASHER | 1 | $2.95 | |
| 5 | 3423-891 | NUT | 1 | $2.61 | |
| 6 | 3502-024 | SPRING, RETURN | 1 | $10.97 |
