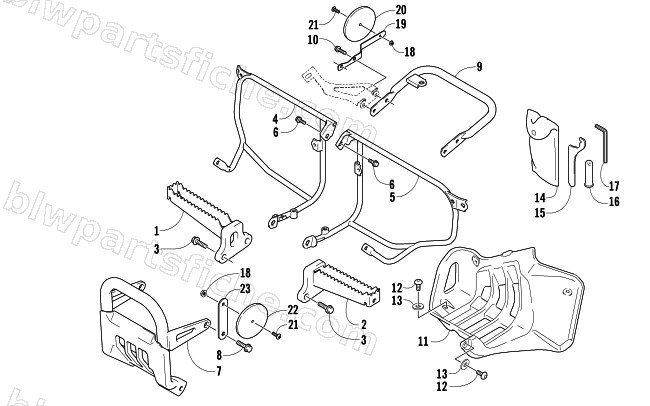

FOOTREST ASSEMBLY
2007 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3406-009 | FOOTREST COMP,R | 1 | $140.95 | |
| 2 | 3406-010 | FOOTREST COMP,L | 1 | $140.95 | |
| 3 | 3423-636 | BOLT | 1 | $5.95 | |
| 4 | 3406-136 | REINF,MUD GUARD,R | 1 | $260.95 | |
| 5 | 3406-164 | REINF,MUD GUARD,L | 1 | $274.95 | |
| 6 | 3423-633 | BOLT, UPPER | 1 | $2.61 | |
| 7 | 3406-148 | GRIP, FRONT | 1 | $263.95 | |
| 8 | 3007-382 | BOLT | 1 | $3.16 | |
| 9 | 3406-149 | GRIP, REAR | 1 | $212.95 | |
| 10 | 3007-432 | BOLT | 1 | $3.44 | |
| 11 | 3406-070 | MUD GUARD,FOOTREST,R(BLACK) | 1 | $156.95 | |
| 11 | 3406-071 | MUD GUARD,FOOTREST,L(BLACK) | 1 | $151.95 | |
| 12 | 3423-661 | SCREW, EXHAUST PIPE COVER | 1 | $3.57 | |
| 13 | 3423-690 | WASHER | 1 | $3.30 | |
| 14 | 3436-017 | TOOL ASSY | 1 | $67.95 | |
| 15 | 3436-019 | CLAMP, WRENCH | 1 | $26.95 | |
| 16 | 3436-020 | GAUGE, AIR | 1 | $108.95 | |
| 17 | 3436-018 | HEXAGON SPANNER, 4 | 1 | $12.35 | |
| 18 | 8424-502 | NUT,HEX-FLG M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 19 | 2506-412 | BRACKET,REFLECTOR-RH PAINTED | 1 | $16.95 | |
| 19 | 2506-413 | BRACKET,REFLECTOR-LH PAINTED | 1 | $16.95 | |
| 20 | 4606-877 | REFLECTOR,REAR-RED | 1 | $4.54 | |
| 21 | 0423-371 | SCREW,MACH-TXSPH-M5X12 SEMS | 1 | $1.37 | |
| 22 | 4606-878 | REFLECTOR,FRONT-YELLOW | 1 | $4.95 | |
| 23 | 2506-389 | BRACKET,REFLECTOR-PAINTED | 1 | $13.95 |
