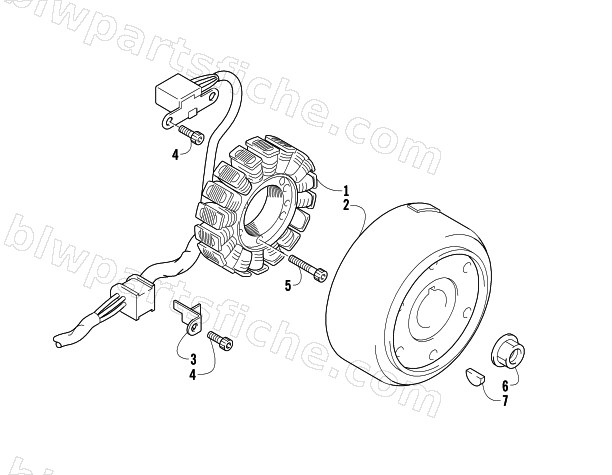

2007 Arctic Cat 400 DVX — MAGNETO ASSEMBLY
2007 400 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3409-026 | STATOR ASSY,MAGNETO | 1 | $703.95 | |
| 2 | 3430-060 | ROTOR ASSY | 1 | $754.95 | |
| 3 | 3430-061 | CLAMP, MAGNETO LEAD NO.1 | 1 | $8.21 | |
| 4 | 3007-519 | BOLT,PULSER COIL | 1 | $3.16 | |
| 5 | 3003-307 | BOLT,5X20 | 1 | $4.95 | |
| 6 | 3423-742 | NUT, MAGNETO ROTOR | 1 | $12.35 | |
| 7 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
