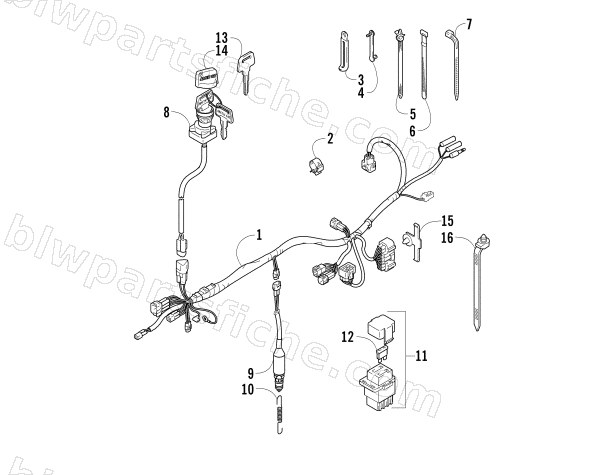

WIRING HARNESS ASSEMBLY
2007 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3509-008 | HARNESS, WIRING | 1 | $736.95 | |
| 2 | 3423-731 | CLAMP | 1 | $5.92 | |
| 3 | 3402-237 | CLAMP,L:135,M6 | 1 | $5.92 | |
| 4 | 3423-732 | CLAMP (L:33) | 1 | $5.92 | |
| 5 | 0693-564 | CLAMP,M11 | 1 | $4.29 | |
| 6 | 3423-733 | CLAMP (L:120) | 1 | $5.92 | |
| 7 | 3008-044 | CLAMP, L:125,M14 | 1 | $2.69 | |
| 8 | 3509-009 | SWITCH ASSY,IGNITION | 1 | $164.95 | |
| 9 | 3409-045 | SWITCH ASSY,STOP LAMP | 1 | $174.95 | |
| 10 | 3423-736 | SPRING | 1 | $6.47 | |
| 11 | 3409-040 | BOX ASSY, COOLING FAN | 1 | $45.95 | |
| 12 | 3530-043 | FUSE (10A) | 1 | $3.44 | |
| 13 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 13 | 3409-011 | KEY, BLANK ( D SERIES) | 1 | $30.95 | |
| 13 | 3409-012 | KEY, BLANK (E SERIES) | 1 | $30.95 | |
| 13 | 3409-013 | KEY, BLANK (F SERIES) | 1 | $30.95 | |
| 14 | 0409-013 | COVER,KEY | 1 | $6.34 | |
| 15 | 3423-777 | CLAMP | 1 | $13.95 | |
| 16 | 3423-778 | CLAMP | 1 | $17.87 |
