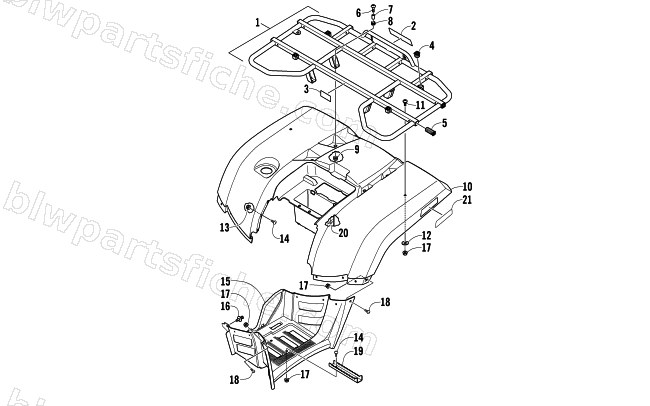

REAR BODY PANEL ASSEMBLY
2007 400 MANUAL TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-753 | RACK,REAR FRAME-ASSEMBLY | 1 | $974.95 | |
| 2 | 0411-814 | DECAL,"ARCTIC CAT"-WHT | 1 | $50.95 | |
| 3 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 4 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 5 | 2406-014 | BUSHING,RACK FRAME | 1 | $2.47 | |
| 6 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 7 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 8 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 9 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 10 | 2506-375 | FENDER,ASSEMBLY-REAR (MARSH GREEN) | 1 | $720.95 | |
| 10 | 2506-373 | FENDER,ASSEMBLY-REAR (RED) | 1 | $742.95 | |
| 10 | 2506-374 | FENDER,ASSEMBLY-REAR (LIME GREEN) | 1 | $720.95 | |
| 11 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 12 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 13 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 14 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 15 | 2406-426 | FOOTWELL,MANUAL-RH | 1 | $101.95 | |
| 15 | 2406-427 | FOOTWELL,MANUAL-LH | 1 | $101.95 | |
| 16 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 17 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 18 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 19 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 20 | 0412-351 | HEAT SHIELD,BATTERY BOX | 1 | $4.40 | |
| 21 | 1411-080 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 21 | 1411-081 | REFLECTOR,REAR-LH | 1 | $5.37 |
