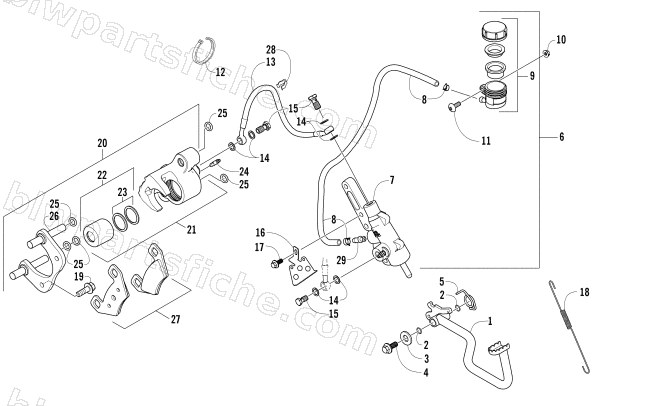

AUXILIARY BRAKE ASSEMBLY
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TBX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1502-291 | DIRMCII 5/8"LIGHTHING RH,35.5-KIT | 1 | $721.95 | |
| 1 | 1502-063 | LEVER,FOOTBRAKE-BLACK (A/AUTO) | 1 | $85.95 | |
| 2 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 3 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 4 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 5 | 0502-807 | SPRING,FOOT BRAKE-BLACK | 1 | $16.49 | |
| 6 | 1502-290 | DIRMC II 5/8",REMOTE RES.-KIT | 1 | $405.95 | |
| 8 | 1502-142 | HOSE,REMOTE RES., W/CLIPS, DIRMC II | 1 | $50.95 | |
| 9 | 1502-141 | REMOTE RESERVOIRSUBASSY& HSECLIP DIRMCII | 1 | $54.95 | |
| 10 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 11 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 1502-140 | BRAKELINE,35.5",45X45 BANJO,45DEG FITTIN | 1 | $122.95 | |
| 14 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 15 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 16 | 1502-179 | BRACKET,SWITCH-BLACK | 1 | $17.87 | |
| 17 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 18 | 0502-785 | SPRING,BRAKE SWITCH | 1 | $5.78 | |
| 19 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 20 | 1436-422 | R/B 2502-574 | 1 | $190.95 | |
| 21 | 1436-160 | KIT-HOUSING,PISTONS,SEALS,BLEADER-RH | 1 | $266.95 | |
| 22 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 23 | 0502-607 | SET,SEALS-CALIPER (FC) | 1 | $30.95 | |
| 24 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 25 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 26 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 27 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 28 | 1502-115 | CLIP,BRAKE HOSE | 1 | $2.61 | |
| 29 | 1502-296 | HOSE ADAPTER SPOUT,90DEG-GROMMET SEAL | 1 | $24.77 |
