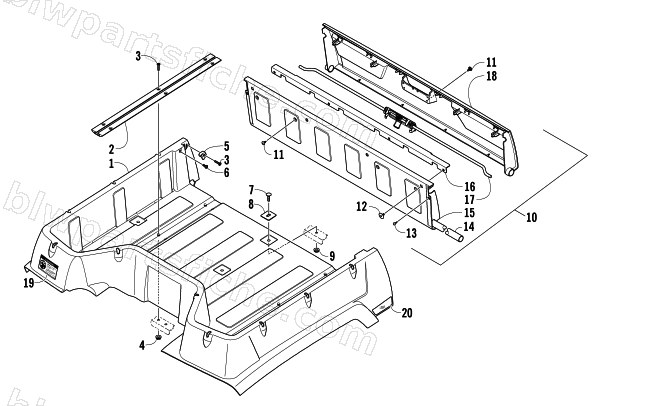

2007 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 TBX — CARGO BOX ASSEMBLY
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TBX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-767 | BOX-ASSEMBLY(W/REFLECTORS) | 1 | $952.95 | |
| 2 | 0541-364 | RAIL,BOX-PTD BLACK | 1 | $47.95 | |
| 3 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 4 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 5 | 1506-940 | STRIKER,HOOK-TAIL GATE-RH-BLACK | 1 | $16.49 | |
| 5 | 1506-941 | STRIKER,HOOK-TAIL GATE-LH-BLACK | 1 | $16.49 | |
| 6 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 7 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 8 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 9 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 1506-568 | TAILGATE,ASSY | 1 | $599.95 | |
| 11 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 12 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 13 | 1406-755 | BUMPER,GROMMET | 1 | $4.95 | |
| 14 | 1406-711 | SHAFT,PIVOT-TAILGATE | 1 | $47.95 | |
| 15 | 1406-709 | PANEL,TAILGATE-FRONT | 1 | $268.95 | |
| 16 | 1506-567 | BRACE,TAILGATE-BLACK | 1 | $79.95 | |
| 17 | 1506-561 | LATCH,TAIL GATE-ASSY | 1 | $156.95 | |
| 18 | 1406-710 | PANEL,TAILGATE-REAR | 1 | $567.95 | |
| 19 | 0411-975 | DECAL,WARNING-NO PASS/WEIGHT LIMIT | 1 | $23.39 | |
| 20 | 0411-980 | REFLECTOR,REAR-RH | 1 | $10.97 | |
| 20 | 0411-979 | REFLECTOR,REAR-LH | 1 | $10.97 |
