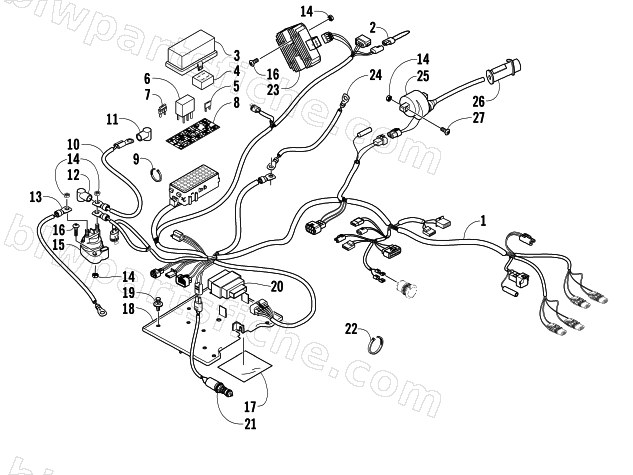

2007 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV — WIRING HARNESS ASSEMBLY
2007 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-216 | HARNESS/DIA,MAIN(07 650 H1 TRV) | 1 | $648.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 6 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 1411-502 | DECAL,PDM (2007 650-H1) | 1 | $110.95 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0445-064 | CABLE,SOLENOID-STARTER (19" RED #6) | 1 | $30.95 | |
| 11 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 12 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 13 | 0445-062 | CABLE,BATTERY-SOLENOID (8.5" RED #6) | 1 | $9.59 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 16 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 17 | 0412-291 | SHIELD,HEAT (PSA) | 1 | $9.59 | |
| 18 | 1406-787 | TRAY,ELECTRICAL (BOOT CDI) | 1 | $26.95 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 0824-038 | CDI UNIT,RL (07 650-H1 FIS) | 1 | $689.95 | |
| 21 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 22 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 23 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 24 | 0445-063 | CABLE,BATTERY-ENGINE (27" BLK #6) | 1 | $33.95 | |
| 25 | 0824-036 | COIL,IGNITION-ASSY | 1 | $252.95 | |
| 26 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 27 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 |
