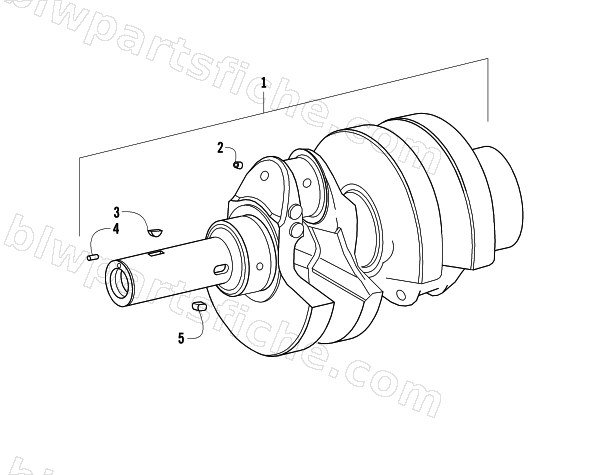

2007 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — CRANKSHAFT ASSEMBLY
2007 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-019 | CRANKSHAFT | 1 | $2,131.95 | |
| 2 | 3206-020 | PLUG DIAM. 6 | 1 | $12.35 | |
| 3 | 3206-018 | KEY | 1 | $20.63 | |
| 4 | 3206-022 | TAPPER PIN | 1 | $1.50 | |
| 5 | 3206-021 | KEY (MM 8) | 1 | $20.63 |
