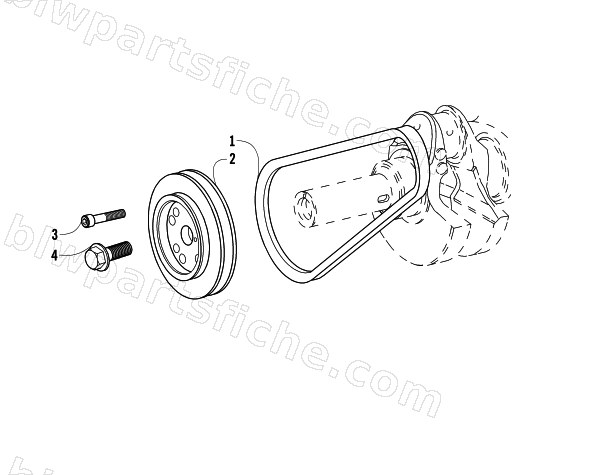

2007 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — DRIVE PULLEY AND ALTERNATOR BELT ASSEMBLY
2007 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-042 | BELT MM 628 | 1 | $93.95 | |
| 2 | 3206-044 | PULLEY 1 GROOVE D.=105 H 38,4 | 1 | $231.95 | |
| 3 | 3206-043 | SOC HEAD CAP SCR M6X40L 8.8 | 1 | $4.95 | |
| 4 | 3206-041 | SCREW M 16 X 1,5 LEFT ROTATION | 1 | $19.25 |
