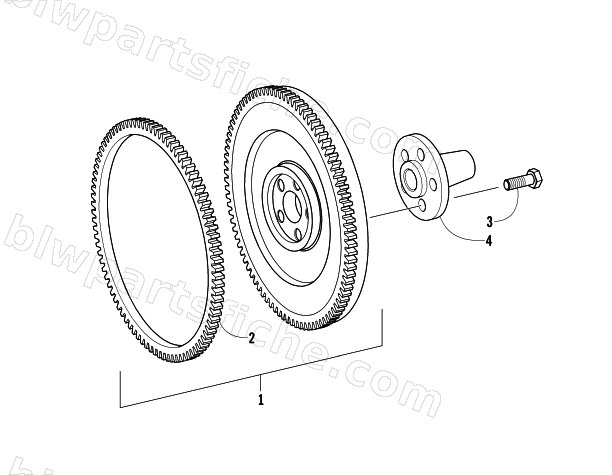

2007 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — FLYWHEEL AND CROWN GEAR ASSEMBLY
2007 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
3206-040 |
FLYWHEEL WITH CROWN Z = 94 (KG 7,4) |
1 |
$766.95 |
|
| 2 |
3206-037 |
CROWN GEAR Ø 238 Z=94 |
1 |
$350.95 |
|
| 3 |
8409-040 |
SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y |
1 |
$1.50 |
|
| 4 |
1402-560 |
AXLE,STUB-CVT DRIVE |
1 |
$108.95 |
|
