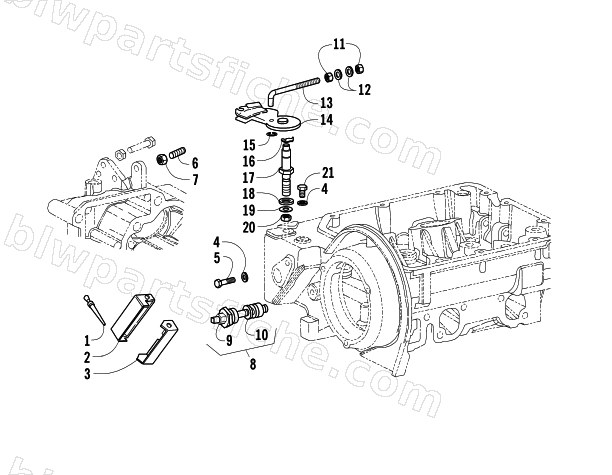

2007 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — THROTTLE CONTROL AND LOCKED TORQUE DEVICE ASSEMBLIES
2007 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-247 | NAIL | 1 | $3.16 | |
| 2 | 3206-251 | SAFETY PLATE | 1 | $101.95 | |
| 3 | 3206-250 | SAFETY PLATE | 1 | $101.95 | |
| 4 | 3206-007 | SEAL,HOSE SCREW | 1 | $1.50 | |
| 5 | 3206-252 | BOLT M 6 X 1 X 16 | 1 | $1.50 | |
| 6 | 3206-249 | SCREW M 6 X 30 | 1 | $5.51 | |
| 7 | 3206-248 | NUT (EPA TYPE) | 1 | $13.73 | |
| 8 | 3206-236 | LOCKED TORQUE DEVICE | 1 | $94.95 | |
| 10 | 3206-235 | GASKET 16X20 | 1 | $2.06 | |
| 11 | 3206-237 | NUT M 5 | 1 | $5.51 | |
| 12 | 3206-238 | WASHER DIAM. 5,3 | 1 | $5.51 | |
| 13 | 3206-239 | TIE ROD | 1 | $20.63 | |
| 14 | 3206-241 | ACCELERATOR CONTROL LEVER | 1 | $156.95 | |
| 15 | 3206-242 | CIRCLIP | 1 | $1.23 | |
| 16 | 3206-243 | CIRCLIP | 1 | $2.47 | |
| 17 | 3206-244 | PIN | 1 | $37.95 | |
| 18 | 3206-253 | WASHER DIAM. 8,4 | 1 | $1.23 | |
| 19 | 3206-246 | RUBBER OIL SEAL | 1 | $1.50 | |
| 20 | 3206-245 | NUT M 8 | 1 | $2.61 | |
| 21 | 3206-240 | BOLT M 6 X 1 X 10 | 1 | $1.50 |
