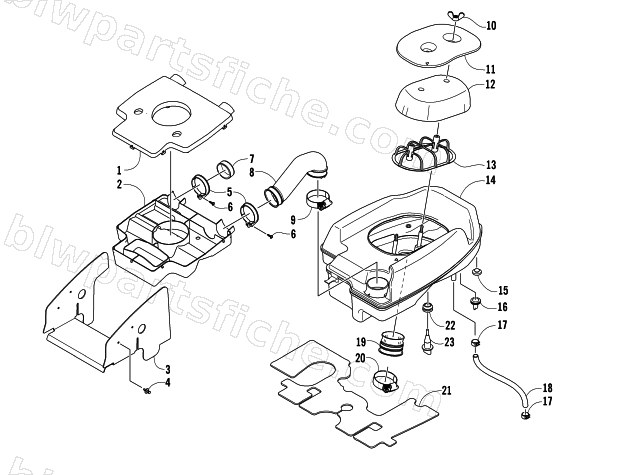

AIR INTAKE ASSEMBLY
2007 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-091 | DIVERTER,AIR-IN | 1 | $40.95 | |
| 2 | 0413-093 | DIVERTER,AIR INTAKE-BOTTOM | 1 | $42.95 | |
| 3 | 1406-785 | SHROUD,SPLASH | 1 | $82.95 | |
| 4 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 5 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 6 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 7 | 0413-096 | CAP-AIR IN,BELT | 1 | $20.63 | |
| 8 | 0470-583 | BOOT,AIR IN-AIR BOX | 1 | $58.95 | |
| 9 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 10 | 0423-716 | WINGNUT,NYLOC-M6X1.0 | 1 | $3.85 | |
| 11 | 0470-832 | LID,AIR BOX-FABRICATED | 1 | $42.95 | |
| 12 | 0470-580 | FILTER, AIR | 1 | $47.95 | |
| 13 | 0470-731 | CAGE,AIR FILTER | 1 | $49.95 | |
| 14 | 0570-226 | BOTTOM,AIRBOX-SERV ASSY | 1 | $248.95 | |
| 15 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 16 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 17 | 0423-045 | CLAMP,HOSE-SPRING(.685"ID X.38") | 1 | $1.78 | |
| 18 | 0410-103 | HOSE,VENT-CRANKCASE | 1 | $20.63 | |
| 19 | 0470-582 | BOOT,THROTTLE BODY | 1 | $20.95 | |
| 20 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 21 | 2406-149 | SHIELD,AIR BOX | 1 | $15.11 | |
| 22 | 3006-657 | GROMMET,AIR TEMP SENSOR | 1 | $16.95 | |
| 23 | 3006-656 | SENSOR, AIR TEMP | 1 | $198.95 |
