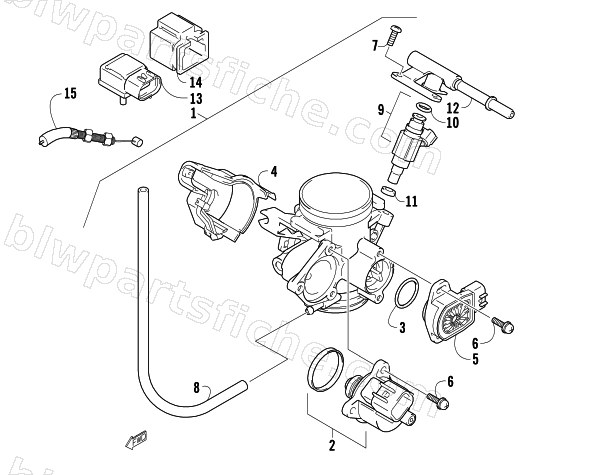

THROTTLE BODY ASSEMBLY
2007 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-116 | BODY ASSEMBLY,THROTTLE | 1 | $1,017.95 | |
| 2 | 3403-117 | MOTOR,ISC STEPPING | 1 | $260.95 | |
| 3 | 3423-812 | O RING | 1 | $26.95 | |
| 4 | 3403-118 | COVER | 1 | $33.95 | |
| 5 | 3530-048 | SENSOR ASSEMBLY (TPS) | 1 | $244.95 | |
| 6 | 3423-813 | SCREW | 1 | $4.13 | |
| 7 | 3423-814 | SCREW | 1 | $3.71 | |
| 8 | 3403-119 | HOSE | 1 | $29.95 | |
| 9 | 3403-120 | INJECTOR ASSEMBLY | 1 | $299.95 | |
| 11 | 3403-121 | SEAL | 1 | $32.95 | |
| 12 | 3403-122 | DELIVERY PIPE | 1 | $525.95 | |
| 13 | 3530-049 | SENSOR,AIR PRESSURE | 1 | $408.95 | |
| 14 | 3530-050 | HOLDER,AIR PRESSURE | 1 | $25.95 | |
| 15 | 0487-032 | CABLE,THROTTLE | 1 | $160.95 |
