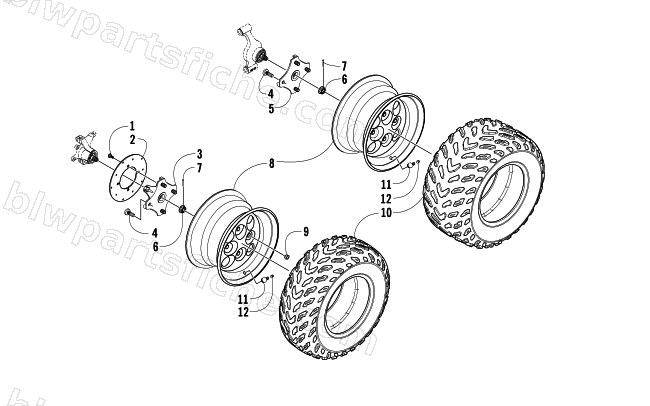

2007 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS LE — WHEEL AND TIRE ASSEMBLY
2007 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 1502-462 | HUB - ASSEMBLY (W/DISC PEARCH) | 1 | $177.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 1502-464 | HUB,ASSEMBLY (W/O DISC PEARCH) | 1 | $129.95 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 8 | 1402-424 | WHEEL-FRONT-BLACK 12" | 1 | $148.95 | |
| 8 | 1402-425 | WHEEL-REAR-BLACK 12" | 1 | $143.95 | |
| 8 | 1402-127 | WHEEL - PLATINUM 12" | 1 | $114.95 | |
| 8 | 1402-115 | WHEEL - PLATINUM 12" | 1 | $114.95 | |
| 9 | 0423-618 | NUT,LUG MOUNTING-CHROME | 1 | $3.57 | |
| 9 | 0423-408 | NUT,LUG-M10 | 1 | $1.37 | |
| 10 | 1402-548 | TIRE,GOODYEAR RAWHIDE RS-(25X8-12) | 1 | $139.95 | |
| 10 | 1402-549 | TIRE,GOODYEAR RAWHIDE RS-(25X10-12) | 1 | $171.95 | |
| 11 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 |
