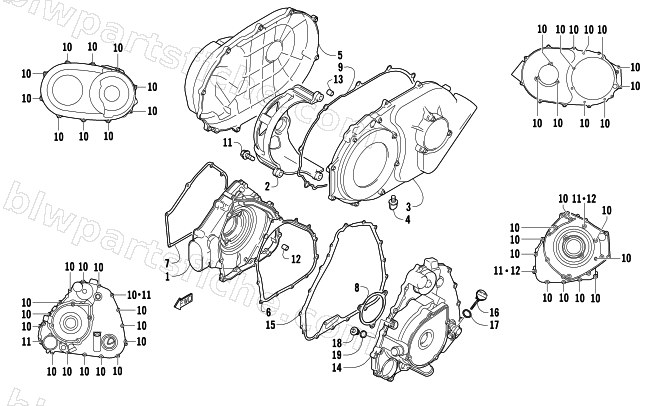

2007 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS — CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY
2007 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-066 | COVER,CLUTCH | 1 | $279.95 | |
| 2 | 3403-067 | HOUSING,V-BELT BEARING | 1 | $140.95 | |
| 3 | 3403-068 | COVER,V-BELT INNER | 1 | $190.95 | |
| 4 | 3423-800 | PLUG,WATER DRAIN | 1 | $12.35 | |
| 5 | 3403-069 | COVER,V-BELT OUTER | 1 | $187.95 | |
| 6 | 3403-070 | GASKET,CLUTCH COVER | 1 | $47.95 | |
| 7 | 3403-071 | GASKET,V-BELT COVER INNER-FRONT | 1 | $54.95 | |
| 8 | 3403-072 | GASKET,V-BELT COVER INNER-REAR | 1 | $20.63 | |
| 9 | 3403-073 | GASKET,V-BELT COVER OUTER | 1 | $56.95 | |
| 10 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 11 | 3007-503 | BOLT,MAGNETO COVER | 1 | $3.16 | |
| 12 | 3004-822 | PIN,DOWEL(ALIGMENT) | 1 | $3.85 | |
| 13 | 3423-610 | PIN | 1 | $3.44 | |
| 14 | 3403-218 | COVER,MAGNETO | 1 | $631.95 | |
| 15 | 3403-075 | GASKET,MAGNETO COVER | 1 | $54.95 | |
| 16 | 3402-438 | GAUGE, OIL LEVEL | 1 | $30.95 | |
| 17 | 3423-055 | O RING D:3.1 ID:16.8 | 1 | $2.75 | |
| 18 | 3402-040 | PLUG,14MM | 1 | $6.20 | |
| 19 | 3403-200 | GASKET | 1 | $4.13 |
