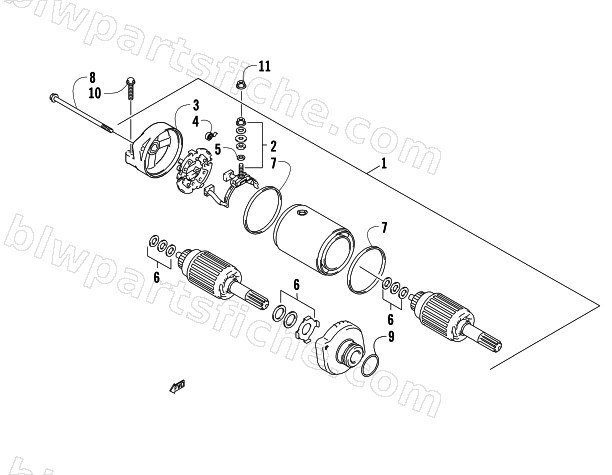

STARTER MOTOR ASSEMBLY
2007 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3545-020 | MOTOR,STARTER ASSEMBLY | 1 | $314.95 | |
| 2 | 3008-094 | TERMINAL, SET BRUSH | 1 | $93.95 | |
| 4 | 3008-095 | HOLDER SET, BRUSH | 1 | $88.95 | |
| 6 | 3008-099 | SHIM SET, STARTING MOTOR | 1 | $20.63 | |
| 7 | 3008-553 | O-RING, STARTER MOTOR | 1 | $19.25 | |
| 8 | 3423-085 | BOLT | 1 | $17.87 | |
| 9 | 3423-272 | O RING,D:3,ID:24.5 | 1 | $3.44 | |
| 10 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 11 | 3423-195 | NUT,STARTER MOTOR,6MM | 1 | $2.61 |
