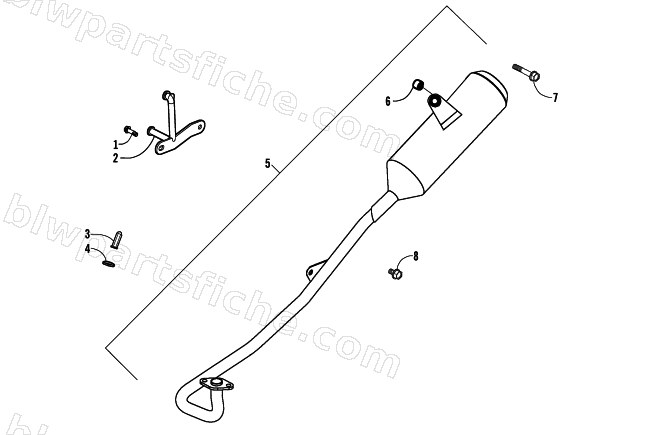

2007 Arctic Cat 90 DVX — EXHAUST ASSEMBLY
2007 90 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-572 | BOLT FLANGE 8*35 | 1 | $2.06 | |
| 2 | 3303-073 | STAY MUFFLER **(0) C.2004.11.17 | 1 | $23.39 | |
| 3 | 3303-261 | NUT CAP 8MM | 1 | $4.13 | |
| 4 | 3303-071 | GASKET EXH PIPE | 1 | $3.30 | |
| 5 | 3303-407 | MUFFLER COMP EXHAUST | 1 | $226.95 | |
| 6 | 3304-571 | RUBBER BUSH MUFFER STAY | 1 | $4.40 | |
| 7 | 3303-314 | BOLT WASHER 8*28 **(0) C.2004.03.18 | 1 | $1.50 | |
| 8 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 |
