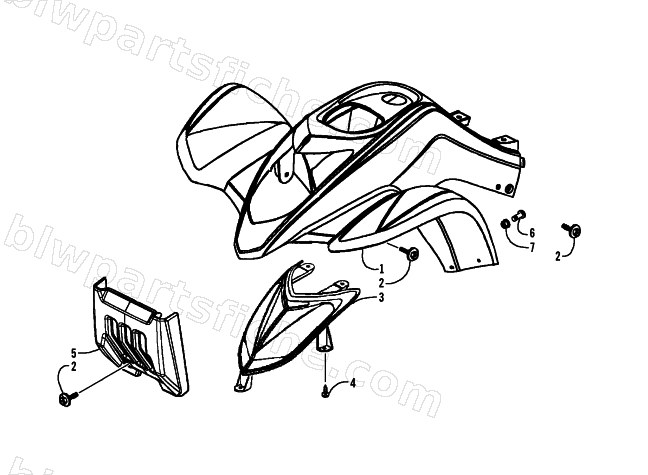

2007 Arctic Cat 90 DVX — FRONT BODY PANEL ASSEMBLY
2007 90 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-450 | FENDER FRONT (RED) | 1 | $122.95 | |
| 1 | 3303-451 | FENDER FRONT (LIME) | 1 | $122.95 | |
| 2 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 3 | 3304-213 | COVER FRONT (BLACK) | 1 | $76.95 | |
| 4 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 5 | 3306-140 | COVER,FRONT BUMPER (MED GRAY) | 1 | $37.95 | |
| 6 | 3303-251 | SCREW SPECIAL 6*16 **900 C.2002.06.18 | 1 | $2.06 | |
| 7 | 3304-431 | NUT LOCK | 1 | $1.23 |
