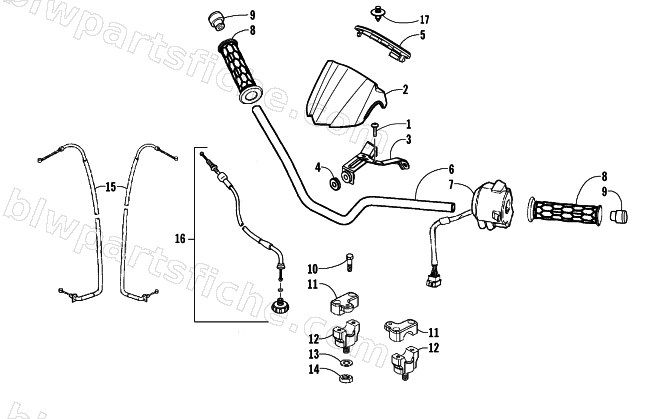

HANDLEBAR AND CONTROL ASSEMBLY
2007 90 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 2 | 3303-436 | COVER HANDLE (BLACK) | 1 | $17.87 | |
| 3 | 3303-435 | STAY HANDLE COVER | 1 | $5.92 | |
| 4 | 3303-239 | RUBBER TAIL LIGHT | 1 | $1.64 | |
| 5 | 3303-437 | LID HANDLE COVER | 1 | $16.95 | |
| 6 | 3303-434 | HANDLE PIPE STRG | 1 | $54.95 | |
| 7 | 3303-424 | SW ASSY LH HANDLE COMP | 1 | $112.95 | |
| 8 | 3305-905 | GRIP,HANDLE-4040 SPEC | 1 | $13.73 | |
| 9 | 3303-196 | END STRG HANDLE **9110 C.97.02.01 | 1 | $2.33 | |
| 10 | 3303-398 | R/B 3307-113 | 1 | $1.95 | |
| 11 | 3303-197 | HOLDER R HANDLE PIPE | 1 | $10.97 | |
| 11 | 3303-198 | HOLDER L HANDLE PIPE | 1 | $10.97 | |
| 12 | 3303-199 | HOLDER UNDER HANDLE PIPE | 1 | $17.87 | |
| 13 | 3305-277 | WASHER PLAIN 10MM | 1 | $1.50 | |
| 14 | 3303-325 | NUT HEX 10MM | 1 | $0.81 | |
| 15 | 3303-173 | CABLE COMP FR BRK **(0) C.2004.06.23 | 1 | $30.95 | |
| 16 | 1502-096 | THROTTLE CABLE/CAP-ASSEMBLY | 1 | $50.95 | |
| 17 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 |
